Astrophotography isn't about simply pointing your camera at the night sky — it's about tracking. Without precise motion, stars blur into trails and galaxies dissolve into noise. Your mount is the single most important piece of gear you own. Everything else is secondary.
Why the Mount Is Everything
Ask any seasoned astrophotographer what they'd save if their entire rig caught fire, and the answer is almost always the same: the mount. A cheap telescope on a great mount will produce better images than a premium scope on a shaky one. The mount has two irreplaceable jobs:
Positioning
Precisely points your telescope at faint objects across a vast, rotating sky — often targets invisible to the naked eye.
Tracking
Compensates for Earth's rotation to keep a target locked in frame across 5, 30, even 300 seconds of exposure.
A poorly tracking mount will give you elongated stars, motion blur, and wasted nights under dark skies. Investing in the right mount from the start — or knowing how to fix the one you have — is the single highest-return upgrade in this hobby.
The Three Types of Telescope Mounts
Not all mounts are created equal — and choosing the wrong type before buying is the most expensive mistake beginners make.
Alt-Azimuth (Alt-Az)
Moves up/down (altitude) and left/right (azimuth), like a surveillance camera. Intuitive for beginners, excellent for visual observing, planetary and lunar imaging.
The catch: Field rotation during long exposures makes deep-sky photography very difficult without a field de-rotator.
Best for: Lunar / PlanetaryEquatorial Platform
A tilted platform that syncs with Earth's rotation — gives ~1 hour of smooth tracking for Dobsonians or wide-field rigs. No GoTo, no frills, no complaints.
The catch: Requires manual reset after each tracking period. No GoTo capability.
Best for: Wide-field / BeginnersGerman Equatorial (GEM)
Aligns the Right Ascension axis with Earth's rotational axis, completely eliminating field rotation. The dominant platform for all serious deep-sky astrophotography.
Why GEMs dominate: Long exposures, GoTo, autoguiding, payload flexibility — all in one system.
Best for: Deep-Sky / EverythingDrive Systems: The Heart of Precision
You can have the sturdiest GEM on the market, but if the drive system is noisy or imprecise, your long exposures will be ruined. Here's what's powering modern mounts:
🔩 Worm Gear Drives (The Proven Classic)
The trusted workhorse of astrophotography for decades. A precision worm gear rotates a larger ring gear, producing smooth, continuous motion. Mounts like the EQ6-R Pro use belt-driven worm gears that are phenomenally reliable.
Advantages
- Predictable, correctable periodic error
- Large payload capacity
- Excellent community support
- Works well with autoguiding
- PEC (Periodic Error Correction) support
Limitations
- Requires counterweights (adds weight)
- Periodic error up to ±10 arcseconds
- Heavier and bulkier for travel
- Meridian flip interrupts imaging
- Requires precise balancing
⚡ Harmonic (Strain-Wave) Drives — The New Wave

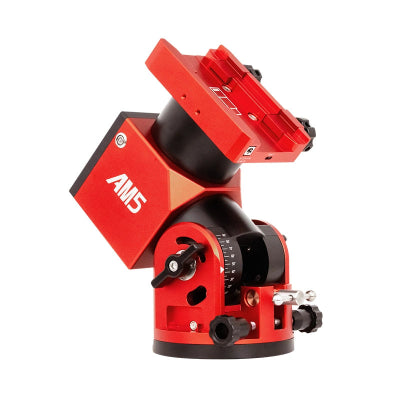

Born from aerospace and robotics, harmonic drives are reshaping what's possible in portable astrophotography. Mounts like the ZWO AM5N can carry 13kg payloads — with zero counterweights — in a package you can fit in a backpack.
Advantages
- No counterweights needed
- Ultra-compact and portable
- Near-zero backlash
- Excellent guiding RMS achievable
- Modern, software-driven design
Limitations
- Requires careful fine-tuning
- High static friction if improperly lubricated
- Irregular deviations possible
- More expensive per kg of payload
- Less community knowledge (newer tech)
🏆 Precision Enhancers
Regardless of drive type, these tools take your tracking from good to extraordinary:
- Periodic Error Correction (PEC): Records gear imperfections over one full rotation and pre-corrects them in subsequent slews.
- Autoguiding: A secondary camera continuously measures star drift and sends micro-correction pulses — achieves sub-arcsecond tracking.
- Absolute Encoders: Real-time sensors on RA and DEC axes enable unguided imaging for many minutes, even hours (found on top-tier mounts like 10Micron GM1000).
Mount Comparison at a Glance
| Mount | Type | Payload | GoTo | Guiding | Best For | Price |
|---|---|---|---|---|---|---|
| Sky-Watcher AZ-GTi | Alt-Az / EQ (wedge) | 5 kg | ✓ | Limited | Beginners, Planetary | ₹35,999 |

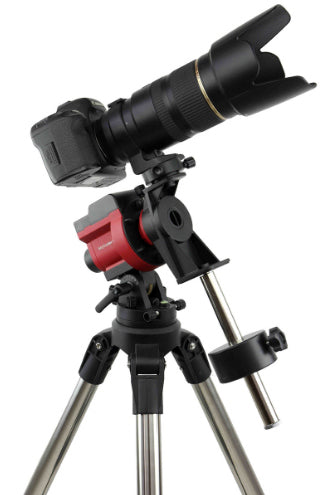

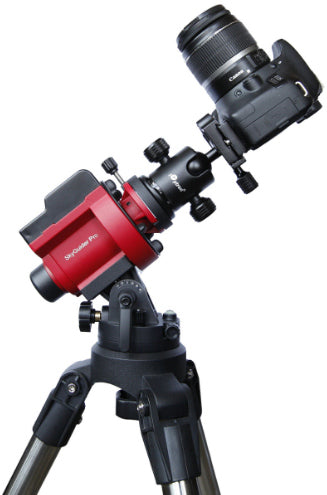

| iOptron SkyGuider Pro | Star Tracker | 4.5 kg | ✗ | ✓ | DSLR Wide-field | ₹42,999+ |

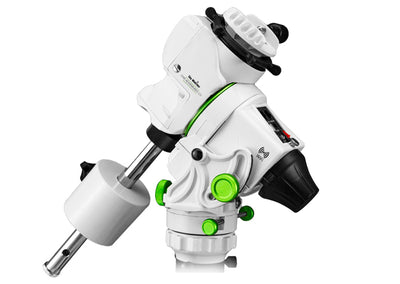

| Sky-Watcher SA GTi | Star Tracker EQ | 5 kg | ✓ | ✓ | Travel, Wide-field | ₹40,999 |

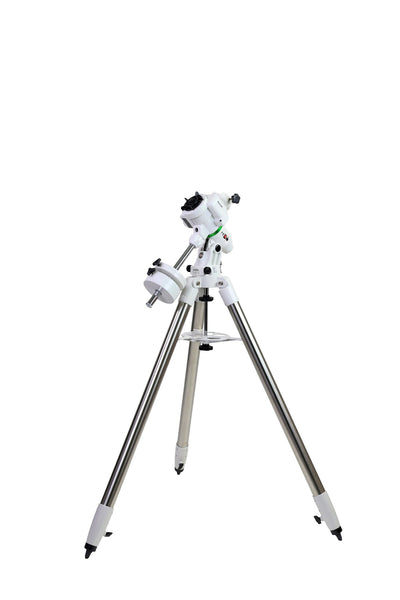

| Sky-Watcher EQ-AL55i | GEM | 8 kg | ✓ | ✓ | Mid-range DSO | ₹89,999 |
| Sky-Watcher EQM-35 Pro | GEM | 10 kg | ✓ | ✓ | Deep-sky beginner-mid | ₹89,999 |

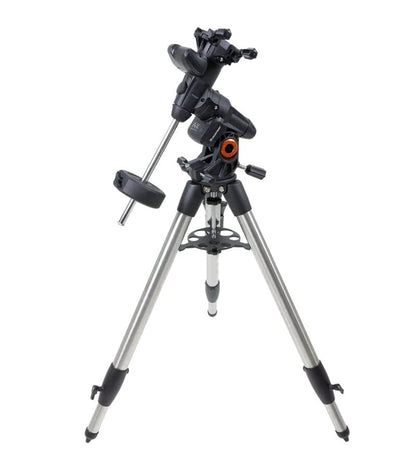

| Celestron Adv. VX | GEM GoTo | 13.6 kg | ✓ | ✓ | Intermediate DSO | ₹1,19,999 |

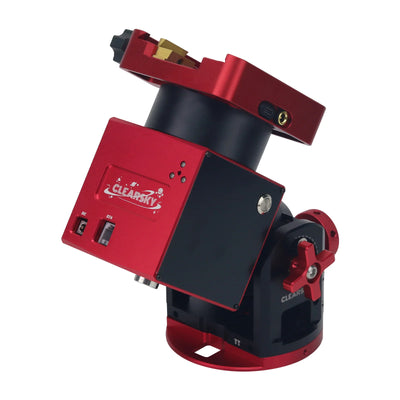

| CLEARSKY ST14 Pro | Harmonic EQ | 14 kg | ✓ | ✓ | Portable advanced | ₹99,999+ |

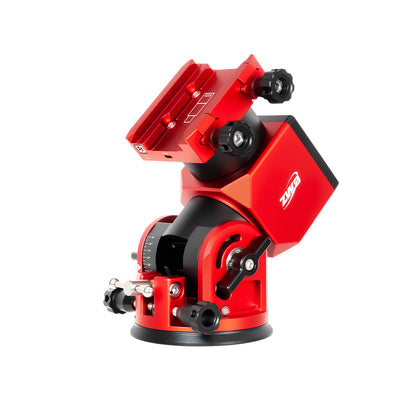

| ZWO AM3N | Harmonic EQ | 10 kg | ✓ | ✓ | Portable / Refractors | ₹1,59,999 |

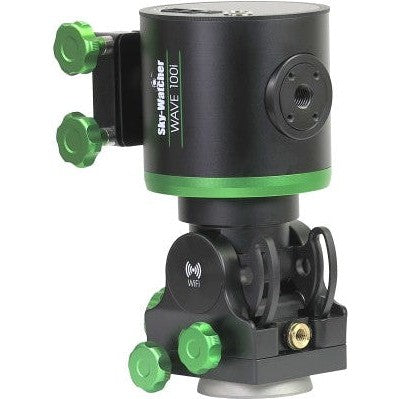

| Sky-Watcher Wave 100i | Strain-wave EQ | 15 kg | ✓ | ✓ | Advanced portable | ₹1,89,999 |
| CLEARSKY ST-20 | Harmonic EQ | 20 kg | ✓ | ✓ | Mid-large OTAs | ₹1,89,999+ |
| Sky-Watcher EQ6R-Pro | GEM | 20 kg | ✓ | ✓ | Advanced DSO workhorse | ₹2,49,999 |
| ZWO AM5N | Harmonic EQ | 13 kg | ✓ | ✓ | Portable powerhouse | ₹2,09,999 |

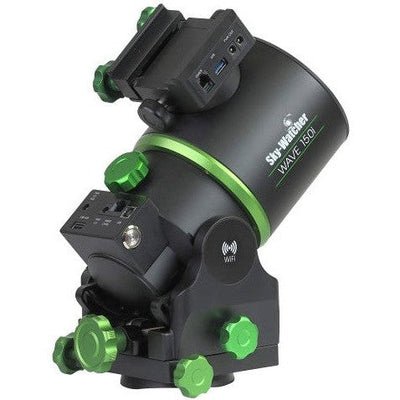

| Sky-Watcher Wave 150i | Strain-wave EQ | 20 kg | ✓ | ✓ | Remote / Advanced | ₹2,29,999 |

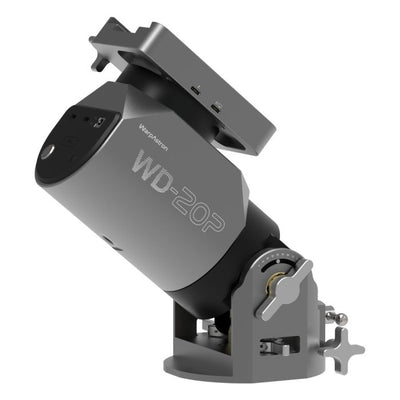

| WarpAstron WD-20P | Harmonic EQ | 30 kg | ✓ | ✓ | Observatory portable | ₹3,49,999 |

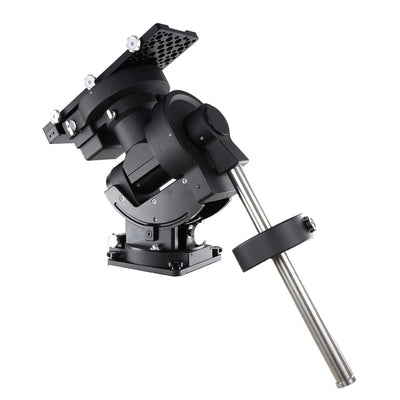

| iOptron CEM120 | Center-balanced GEM | 50 kg | ✓ | ✓ | Observatory / OTA heavy | ₹4,99,999 |
🔭 Find Your Perfect Mount
Answer 3 quick questions and we'll point you to the right starting point from EDISLA's collection.
Field-Tested Mounts, Available Now
Every mount below is available from EDISLA — India's strategic partner for serious astrophotographers. These aren't just products, they're platforms we've tested, fixed, and pushed to their limits under real Indian skies.
🌱 Starter & Travel Mounts
📷 Camera & Tracker Mounts (iOptron)
🔭 Mid-Range GEM Mounts
⚡ Harmonic & Strain-Wave Mounts — The New Era
🏛️ Advanced & Observatory-Grade
8 Field-Tested Tips for Better Tracking
Gear is only half the battle. These are the eight habits that separate astrophotographers who consistently produce sharp images from those who don't.
- Polar Alignment First, Always. Aim for under 5 arcminutes for worm gear mounts, under 2 arcminutes for harmonic drives. Use SharpCap, PHD2 drift alignment, or your mount's built-in iPolar/PoleMaster for best results.
- Balance Slightly East-Heavy. On the RA axis, keep the east side very slightly heavier. This keeps the worm gear engaged against backlash and produces smoother guiding corrections.
- Operate at 60–70% Payload. Never max out your mount's rated capacity. The last 30% of rated load degrades tracking disproportionately. If your mount says 15kg, image with a 9–10kg rig.
- Enable PEC on Worm Drives. Record one full worm rotation and enable Periodic Error Correction. Paired with autoguiding, this can reduce your peak periodic error by 50–80%.
- Autoguide with Proper Aggression. Over-aggressive corrections cause jitter. Under-aggressive settings allow drift. Start with 60–70% aggression in PHD2 and tune from there using your mount's characteristic frequency.
- Cable Manage Obsessively. Loose cables create tension during slewing, pulling your declination axis off target. Route cables through the RA axis if possible, and secure all connections with velcro ties.
- Let the Mount Acclimate. Thermal expansion changes gear meshing. Allow your mount at least 30–45 minutes to reach ambient temperature before imaging, especially if moving from an air-conditioned car.
- Read Your Guiding Graphs. High-frequency oscillations suggest backlash or polar alignment issues. Low-frequency drift usually means polar alignment or flexure. Understand what your graphs tell you and fix the root cause — not the symptom.
