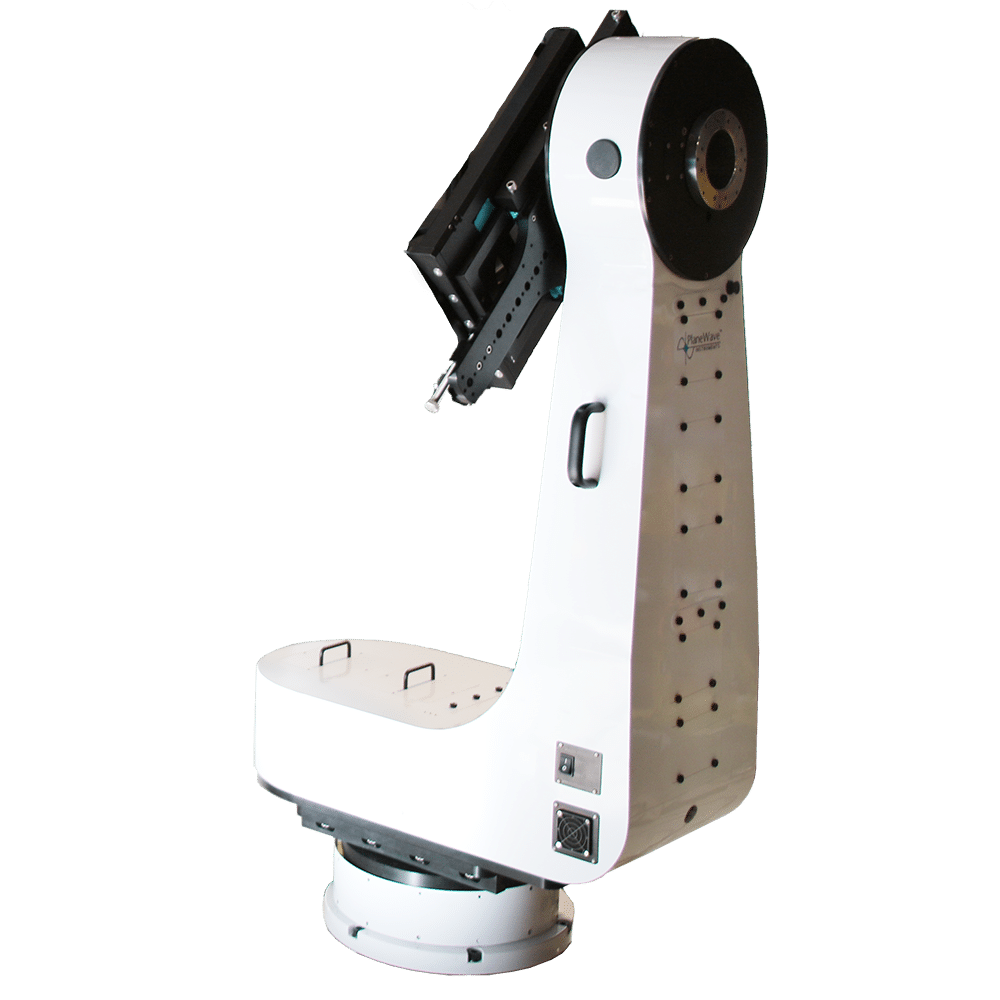

Planewave L-600 Direct-Drive Telescope Mount

Planewave L-600 Direct-Drive Telescope Mount

Regular price Rs. 3,599,999.00
Regular price Sale price Rs. 3,599,999.00
Sale Sold out
Tax included. Free Shipping (Read our policies here)

Out of stock

  • RazorPay Secure Payment & EMI
  • All India Fast & Free Shipping
  • Replacement Guarantee

The PlaneWave L-600 Direct Drive Mount represents the pinnacle of engineering excellence, designed to meet the rigorous demands of astrophotography enthusiasts and advanced astronomy researchers. This mount, a key component in our L-Series, integrates superior technology to provide an unparalleled observational platform.

Key Features Overview

The L-600 stands out with its notable specifications and features:

  • 300 lbs load capacity
  • Direct drive motors for zero backlash, zero periodic error, and fast 50-degree-per-second slew speeds
  • High-resolution encoders for precise positioning
  • Enclosed electronics
  • Through the mount cabling
  • Alt/Az or equatorial installation orientations
  • Ideal for the DeltaRho 500, CDK17, CDK20 f/6.8, CDK20 f/7.7, CDK24, IRDK17, IRDK20, IRDK24, RC20, and RC24 optical tube assemblies
  • About the L-600 Direct-Drive Telescope Mount

    Core Features of the L-600 Direct Drive Mount

    State-of-the-Art Direct-Drive Motors

    Equipped with PlaneWave’s proprietary direct-drive motors on each axis, the L-600 ensures the telescope’s smooth, fast, and whisper-quiet movement. This rapid adjustment capability is ideal for tracking celestial objects and satellites across the sky with minimal vibration and maximal accuracy.

    High-Resolution Encoders

    With high-resolution encoders on each axis, the L-600 offers precise positioning, crucial for capturing sharp, detailed images of the night sky. These encoders are fundamental for scientific applications where exact data collection is paramount.

    Zero Backlash and Periodic Error

    The design of the L-600 eliminates backlash and periodic error, providing steady tracking that is essential for high-quality astrophotography and reliable, long-term observational research.

    Flexible Installation Options

    Available in both Alt/Az and equatorial configurations, the L-600 meets diverse observational needs. Whether for a fixed installation in an educational observatory or a versatile setup for professional astronomers, this mount adjusts to various settings and requirements.

    Through-the-Mount Cabling

    The innovative through-the-mount cabling system enhances setup neatness and safety, preventing cable snagging and reducing setup time, which is particularly beneficial in public or educational settings.

    Azimuth Dovetail Balance System

    Provides precise center of gravity adjustments, enhancing the stability and performance of the system in both alt-azimuth and equatorial configurations, crucial for maintaining accurate tracking and reducing strain on the mount during extended observations.

    Rapid Target Acquisition

    Equipped with direct-drive motors capable of slew speeds up to 50 degrees per second, enabling quick and efficient targeting of celestial objects and satellites, crucial for dynamic observations and time-sensitive astrophotography.

    Optional Dual Mounting Bracket

    Allows for the attachment of additional telescopes or accessories on the mount, enhancing versatility and enabling simultaneous multi-instrument use, ideal for complex observational setups or educational demonstrations.

    Rapid Target Acquisition

    Equipped with direct-drive motors capable of slew speeds up to 50 degrees per second, enabling quick and efficient targeting of celestial objects and satellites, crucial for dynamic observations and time-sensitive astrophotography.

    PointXP Mount Modeling Software

    Included with the mount, PointXP software creates precise models of the mount’s tracking behavior, improving its accuracy for critical applications. This software is invaluable for projects requiring exact positioning and tracking over extended periods.

    Application-Specific Advantages

    Astrophotography

    The L-600’s fast slew speeds and silent operation allow astrophotographers to quickly and quietly reposition between shots, capturing stunning celestial images without disturbing the observational environment.

    Research

    Researchers benefit from the L-600’s robust build and precise tracking to conduct detailed celestial observations and night-long monitoring with minimal interruption and consistent data quality.

    Space Situational Awareness (SSA) and Space Domain Awareness (SDA)

    With its ability to swiftly and accurately reposition, the L-600 has ben been used for tracking satellites and space debris. However, our L-series mounts work best for astrophotography and research applications. To exceed the ideal performance requirements for SSA/SDA applications, we created the T-600 Direct-Drive Gimbal.

    Type Alt-Azimuth / Equatorial Direct-Drive Mount
    Weight 338 lbs (153 kg)
    Max. Load Capacity 300 lbs (136 kg)
    Latitude Range 0 to 90 degrees, Northern and Southern hemispheres
    Cable Management Equipment cables can be wired through mount
    Swing-Through Length (From Altitude Axis) 891.54 mm (35.1")
    Control Electronics PlaneWave Interface dual axis telescope control
    Homing Sensors Home position sensors are included allowing the mount to find its home position on power up
    Slew Rate 20 degrees per second (standard); 50 degrees per second (maximum), both axes
    Power Requirement Accepts 120 to 240 VAC. Supplied with 120 VAC 15A IEC Type B Regulated Power Adapter.
    Motor Control Industrial grade brushless motor control system and built in electronics
    Motor – Azimuth and Altitude Direct-Drive 3 Phase Axial-Flux Torque Motors
    Encoder – Azimuth and Altitude 152 mm stainless steel encoder ring with reader built into the azimuth and altitude axes. 18,880,000 counts per revolution (0.069-arcsecond resolution).
    Motor Torque Approximately 20 ft-lbs continuous; 50 ft-lbs peak
    Drive Electronics Industrial grade, off-the-shelf brushless motor drives for each axis with custom designed interface card
    Telescope Control Software Uses PWI4. Incorporates PointXP mount modeling software by Dave Rowe. All ASCOM compatible.
    Pointing Accuracy <10-arcsecond RMS with PointXP Model
    Pointing Precision 2 arcseconds at sidereal velocity
    Tracking Accuracy 0.3 arcseconds over a 5-minute period at sidereal velocity
    System Natural Frequency 10 Hz or greater
