Wanderer Astro

Wanderer Astro Box PLUS V3

Wanderer Astro Box PLUS V3

Rs. 29,999.00
Rs. 29,999.00
Sale Sold out
Tax included. Free Shipping (Read our policies here)

In stock
  • RazorPay Secure Payment & EMI
  • All India Fast & Free Shipping
  • Replacement Guarantee

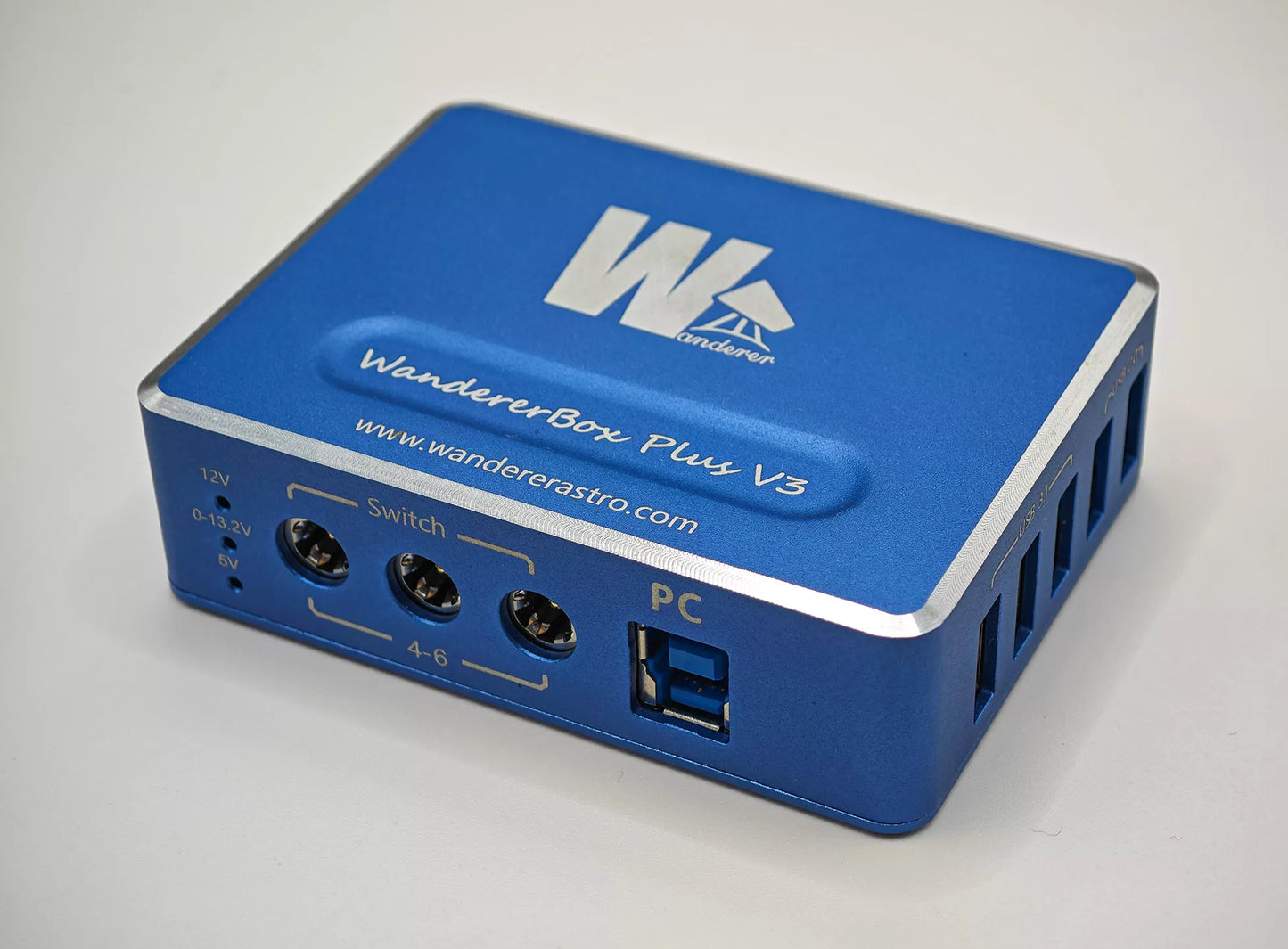

Normally open DC output * 1 5-13.2V regulator output * 1 Dew heater(or switch) output * 1 DC switch output * 3
DC5525 input supports up to 12V 10A
2*USB3.1+3*USB2.0

Built-in 12V-5V step-down module Maximum 5A continuous current USB ports can be switched on/off together


The 5-13.2V adjustable regulator (can be turned off) easily copes with input voltage changes and ensures stable power supply to the camera

Adjustable voltage meets the requirements of different devices

**Normally open DC output: DC5525, internally directly connected to the input port, maximum 10A.

**5-13.2V regulator output: DC5521, adjustable voltage, switchable, maximum current 5A

**Dew heater output: DC5521, can control the power of dew heater, can also be used as a switch, maximum current 8A

**3 parallel DC switch output: DC551, switchable, maximum total current 8A
**Two USB3.1 outputs can be used to connect cameras for high-speed readout.
**Three USB2.0 outputs can be used to connect other devices such as equatorial mounts, WandererCovers, etc.

**All USB output ports share a 5V 5A power supply capacity, which can power a USB dew heater.

**Long input power cables may cause voltage drops, and the power supply voltage of remote observatories may also be unstable. This DC port will maintain a stable set voltage, which is essential for stable operation of the camera. Some cameras may have image readout problem when the voltage is lower than 12V or unstable. **The operating voltage of some devices (such as most SLR cameras) is not 12V, and the adjustment range of 5 to 13.2V is suitable for most devices.

**This DC port can also be switched on and off.

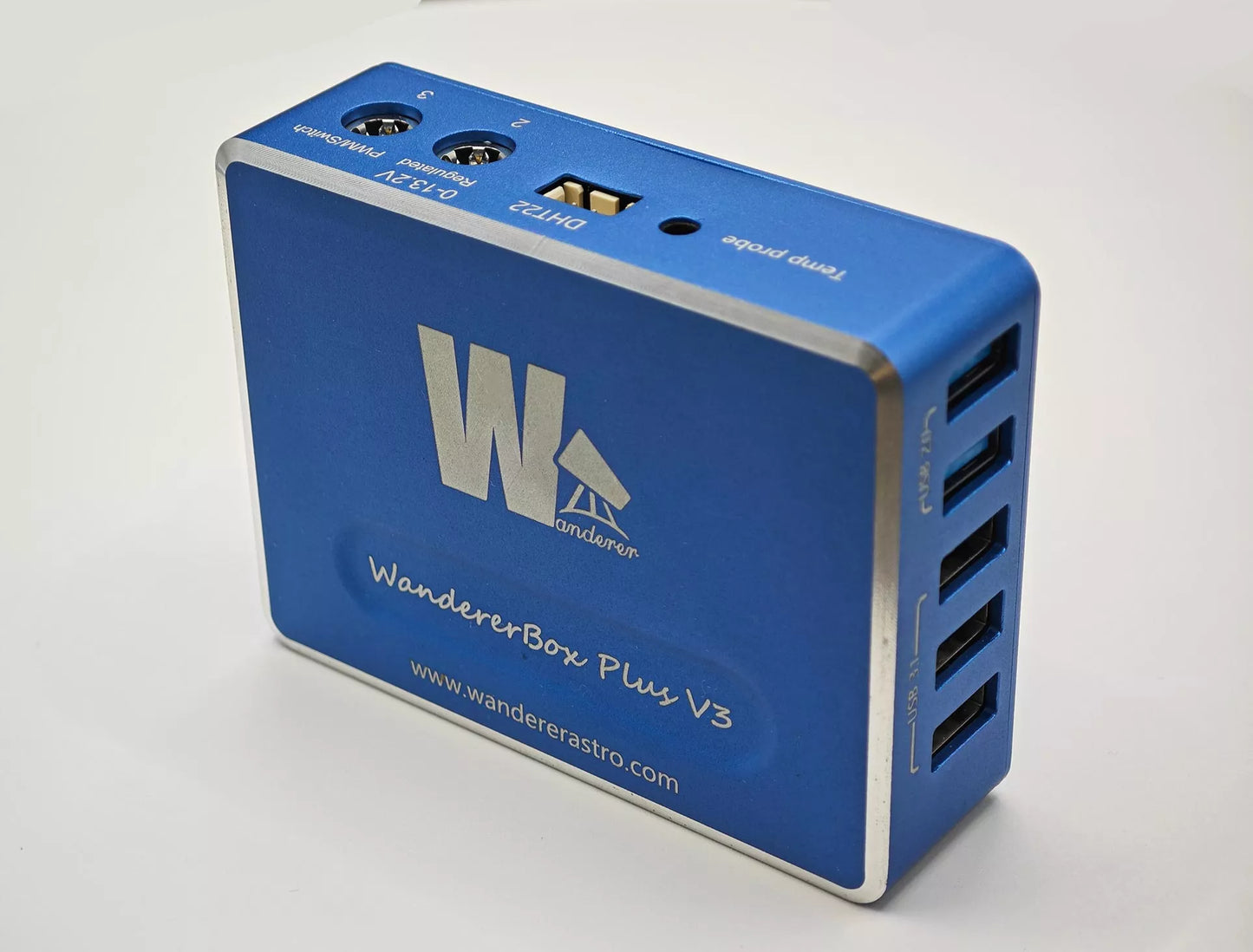

1*DHT22 temperature & humidity sensor 1*temperature probe
（Standard accessories, no additional purchases required）
Automatic and intelligent Dew Heater Control
Electrophoresis protection
Short circuit protection
Overcurrent protection
Electrostatic protection
Maximize the security of WandererBox itself and connected devices



Input voltage and current monitor
Sensors monitor









1. Manual control: Manually adjust the duty cycle of the PWM port to control the power of the dew heater(0-255).


2. Constant temperature control: WandererBox will keep the dew heater temperature constant at the set value.


3. Dew point temperature difference mode: WandererBox will regulate the temperature of the dew heater to maintain a fixed value higher than the dew point. It saves power and prevents condensation effectively. It also ensures that the dew heater does not overheat, ensuring good image quality.







**The environment of a remote observatory can be harsh, and the normal operation of the equipment is very important. We have specially designed the WandererBox series to protect the safety and stability of the equipment as much as possible.

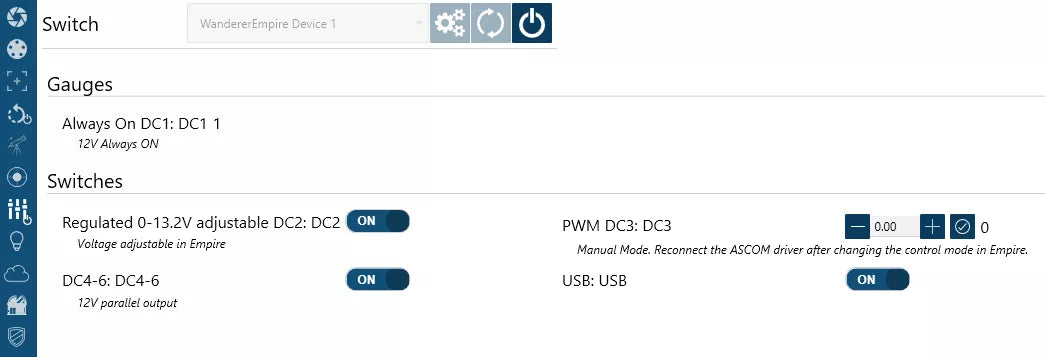

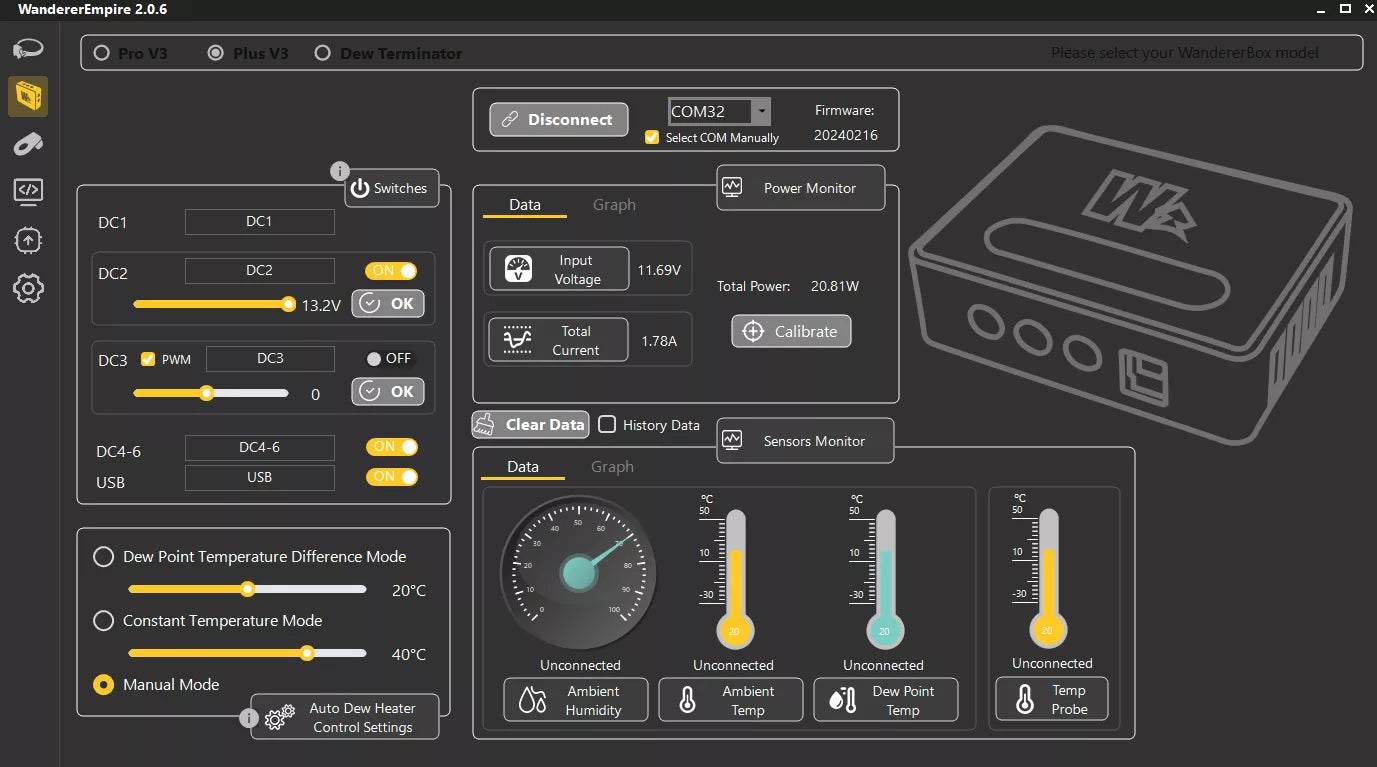

**Excellent visualization interface. Voltage, current, dew point temperature and other information are clear at a glance.

Note: Current readings are for reference only and may be offset due to environmental factors.

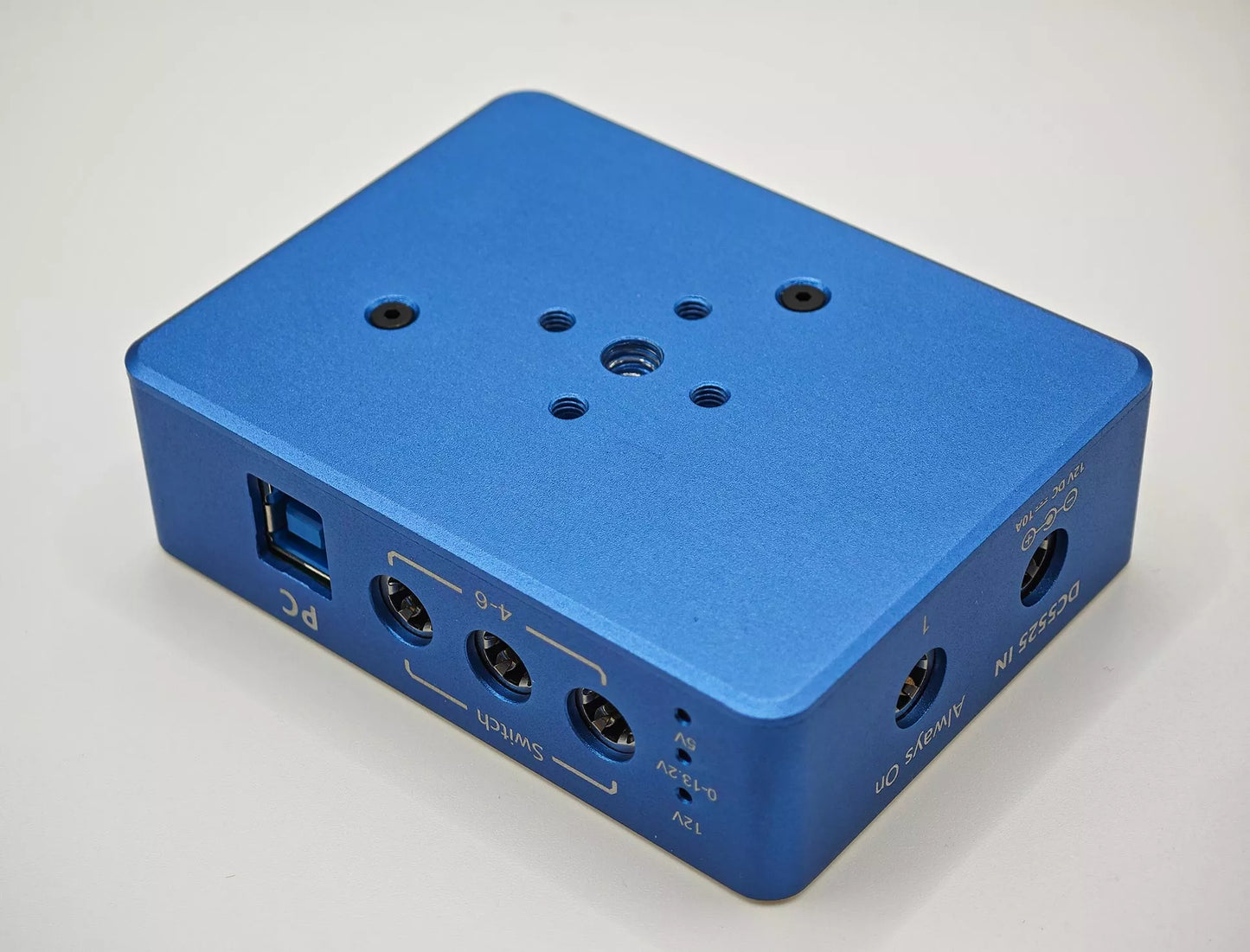

Size 8.6×6.5×2.6cm Weighs only 150g One M6 and four M4 threaded holes on the bottom

With power indicator lights
The working status is clear at a glance


You can use our Mini Dovetail Plate to secure the Wanderer Dew Terminator to your dovetail slot.

You can also use screws to fix it to a dovetail board or any structure with holes.
The power light is dim and won't affect your dark environment. Of course, you can also cover the power light.
