Please notice that all cameras with cooler need to be connected to an external 11-14v power supply to work.
IMX071

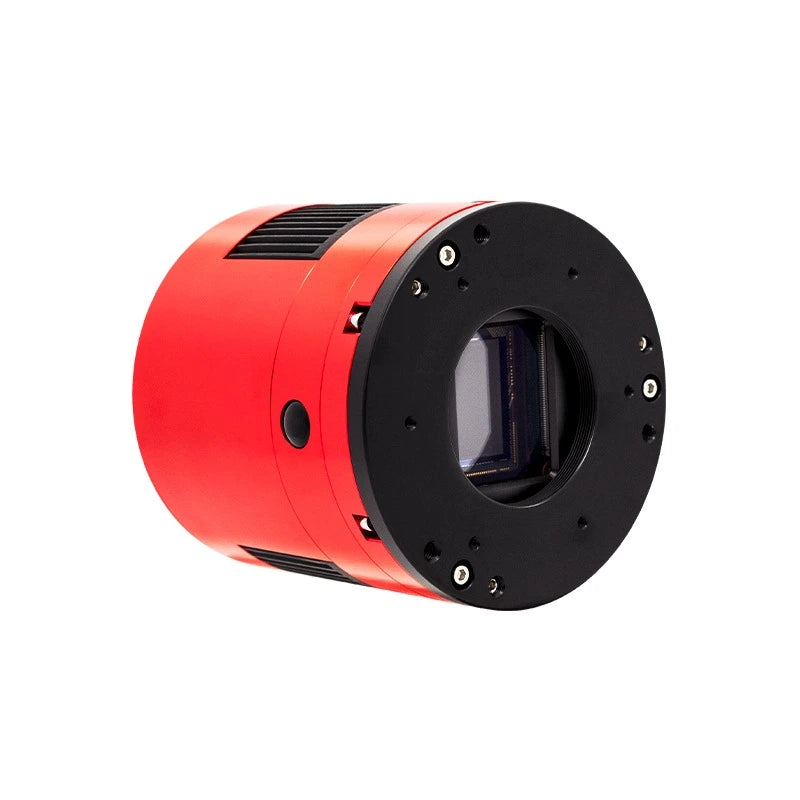

The ASI071MC Pro is a popular OSC camera based on the highly appreciated sensor from Sony – the IMX071 – in APS-C format. A good set of specifications combined with a good price makes it a great choice for those who want to take the step from DSLR to a dedicated astronomy camera. Some of the highlights include:
- APS-C format (28.4 mm diagonal) with 4.78 um pixel size – ideal for many types of telescopes
- 14-bit ADC– giving high dynamic range of 14 stops
- A high 46ke- full well capacity – helping to reduce the issue of for example saturated stars
- 16-megapixel sensor with 4944*3284pixels – plenty of detail can be captured in high resolution
- Electronic shutter– no vibration problems compared to a mechanical shutter
- Very low read noise of 2.3 e-at 24 dB gain – bringing out more details in your images with improved dynamic range
If you are looking for an APS-C type OSC camera for astrophotography, you can’t go wrong with the ASI071MC Pro. It will provide low read noise and a high dynamic range.
DDR Memory Buffer
ASI071MC Pro camera includes a DDR3 memory buffer to help improve data transfer reliability. Additionally, the use of a memory buffer minimizes amp-glow, which is caused by the slow transfer speeds when the camera is used with a USB 2.0 port.
DDR memory buffer is the main difference between ASI “Cool” and “Pro” cameras.
Astrophotography Performance
ASI071MC Pro offers very good performance for astrophotography. Low read noise, high dynamic range.
Dark Current
The Dark Current of ASI071MC Pro is better controlled than before with the help of a DDR buffer and new improved hardware design.
QE Curve
We suppose the QE peak value is more than 50%.
Unique Tilt Adapter
ASI071 Pro includes unique tilt adapter. Say goodbye to tilt problems forever!

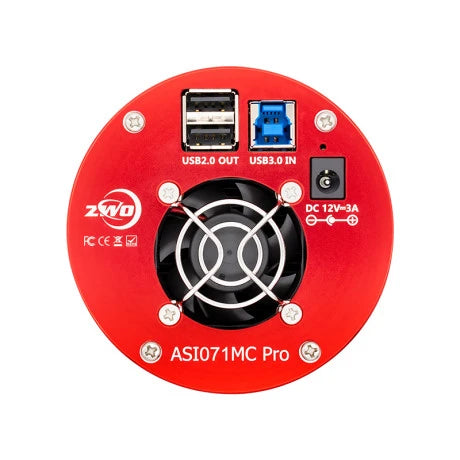

USB 3.0 Port & USB2.0 HUB
USB 3.0 Port: Provide 5Gb bandwidth to make it possible for ASI071MC Pro to run at 10 fps (14bit, normal mode) at full resolution(16Mega).
USB 2.0 HUB: Can connect with various accessories, including a filter wheel, guide camera or electronic focuser, allowing you to manage your cables better. There are two short 0.5m USB2.0 cables included with the ASI071 Pro. The hub is powered by the external power supply if you connect one.
New mechnical design and Anti-Dew Heater
The ASI071MC-PRO camera comes with a completely upgraded anti-dew and mechanical body.
The diameter of the camera body is increased to 86mm compared to the ASI071MC Cool (78mm).
▶6 screws seal the chamber
This new structure seals the CMOS chamber better.
▶Anti-dew and cooling system
Thanks to the two-stage TEC cooling, ASI071MC Pro can lower the CMOS sensor temperature to more than 35-40 degrees Celsius below ambient temperature, which can greatly reduce dark current generation and sensor noise even during extended exposure times.
*The Delta T 35-40℃ is tested at 30℃ ambient temperature. It might get down when the cooling system is working for a long time. Also, as the ambient temperature falls, the Delta T would also decrease.
Please notice that the camera needs to be connected to an external 11-14v power supply to implement the cooling function. We recommend you use 12V@3A DC adapter (5.5*2.1mm, center pole positive) or lithium battery with 11-14V to power the camera. If you don’t have one, please click here to buy a 12V power adapter. There are 4 different standards for different countries, please make sure you selected the correct adapter when placing the order.
The anti-dew heater will heat the AR protect window to avoid any dew problems. The heat anti-dew heater power is around 3.6W and can be turn off in software to save power.
Connecting Diagram
- 2” Filter (optional)
- EOS-T2 adapter
- M42 to M48 extender 16.5mm
- M42 extender 21mm
- Focal reducer
- OAG
Mechanical Diagram
What is in the box?
ASI071MC Pro box includes all necessary cables, adapters, and manuals.
The best solution of 55mm back focus length
Read more: The Best Solution Of 55mm Back Focal Length
Please notice that the camera needs to be connected to an external DC 12V @3A~5A power supply adapter for use (connector 5.5*2.1mm, center pole positive). If you don’t have one, click here to buy a 12V power adapter. There are 4 different standards for different countries, make sure you selected the correct adapter when placing the order.
Alternatively, you can power the camera using ASIAIR or a lithium battery with 11-14V.
Just be aware that power supplies out of this range might cause irreversible damages to your camera.
ASI071 Gallery
M13 by Jesus Magdalena
Imaging telescope or lens: SkyWatcher ED120 Black Diamond
Imaging camera: ZWO Optical ASI071
Guiding camera: ZWO ASI 174MM
Focal reducer: TS 0.79x
Filter: Huetech IDAS LPS D1
Resolution: 2368×1576
Dates: June 12, 2017
Frames: 36×300″ -10C
Integration: 3.0 hours
Flats: ~30
Bias: ~100
M31 by Tolga
Imaging telescope or lens: Vixen VSD 100 f/3.8
Imaging camera: ZWO ASI071MC-Cool
Mount: Advanced VX
Software: Adobe Photoshop CS6, Software Bisque Sky X Pro, PixInsight 1.8
Resolution: 4874×3164
Dates: Oct. 9, 2016
Frames: 88×120″
Integration: 2.9 hours
Antares in the Cloud of Rho Ophiuchi by Adam Jesionkiewicz
Imaging telescope or lens: William Optics Star 71 f/4.9 Astrograph
Imaging camera: ZWO ASI071MC-Cool
Mount: iOptron CEM25-EC
Resolution: 2439×1615
Dates: May 2, 2017
Frames: 40×300″
Integration: 3.3 hours
