The Ultimate Guide to
Dedicated Astrophotography Cameras
Sensor sizes, pixel scales, colour vs mono, cooled vs uncooled โ everything you need to choose the perfect camera for your night sky, your telescope, and your budget.
Astrophotography has never been more exciting โ or more confusing. With cameras from ZWO, QHY, Player One, Touptek and more, all using the same Sony sensors, choosing the right camera can feel overwhelming. This guide cuts through the noise: sensors, sizes, cooling, colour vs mono, and exactly which camera maps to your goals.
From CCDs to CMOS: Why Everything Changed
A decade ago, astrophotographers had three realistic choices: expensive cooled CCDs, a modified DSLR, or early CMOS sensors plagued with noise and uneven response. The dedicated astronomy camera market was niche, expensive, and technically demanding.
Then Sony's IMX sensor series changed everything. Dramatically lower noise, faster readout speeds, higher quantum efficiency, and โ critically โ affordable manufacturing costs. This triggered a gold rush: ZWO, QHY, Player One, Touptek, RisingCam and dozens of other brands all began building cameras around the same Sony IMX sensors.
Key Specifications That Actually Matter
Marketing sheets are full of impressive numbers. Here are the six specifications that genuinely impact your imaging results โ and what they actually mean in the field.
Pixel Size (ฮผm)
Large pixels (4.6โ5.8ฮผm) collect more light per pixel โ forgiving for fainter targets and less-than-perfect guiding. Small pixels (2.4โ3.8ฮผm) demand better optics and guiding but resolve finer detail. Match pixel size to your focal length using the Nyquist sampling rule.
Sensor Size
Sensor diagonal determines your field of view for a given focal length. APS-C sensors (IMX571, 28mm diagonal) give wide, cinematic deep-sky views. Smaller 1" or 4/3" sensors work brilliantly with compact refractors. Full-frame is observatory territory.
Read Noise (eโป)
Read noise is the electronic noise added every time a pixel is read. Lower is better โ especially for short exposures, narrowband imaging under light pollution, or capturing faint signal without stacking hundreds of frames. Modern sensors achieve 0.7โ1.5eโป.
Quantum Efficiency (QE)
The percentage of incoming photons that actually register as signal. 91% QE means 91 of every 100 photons are captured. Higher QE = more signal per exposure. Most modern BSI Sony sensors peak at 80โ92% โ remarkable compared to early CMOS cameras.
Cooling (ฮT)
TEC (two-stage thermoelectric) cooling drops sensor temperature 35ยฐC below ambient, dramatically reducing dark current noise. At 0ยฐC, a modern cooled sensor generates only ~0.003eโป/s/pixel โ making 300s exposures essentially dark-current free.
Dynamic Range & ADC
16-bit native ADC (found in ASI2600, ASI6200) gives 14 stops of true dynamic range. This means bright stars and faint nebula tendrils can coexist in a single frame without clipping โ critical for targets like the Orion Nebula or large galaxies.
Sensor Size & Best-Use Reference Table
Use this table as a quick reference when matching a camera sensor to your telescope and imaging goals.
| Sensor Type | Diagonal | Key IMX Sensors | Example Cameras | Best Use Case |
|---|---|---|---|---|

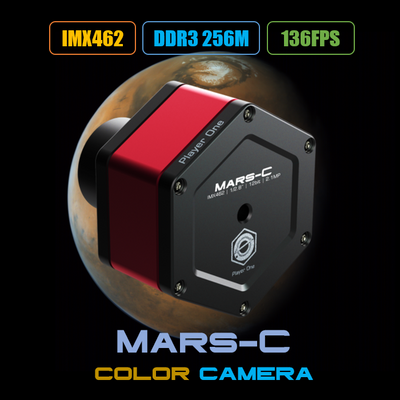

| Tiny (1/3"โ1/2") | 6โ9 mm | IMX224, IMX462 | ZWO ASI224MC, Mars-C | Planets, Moon, Solar |

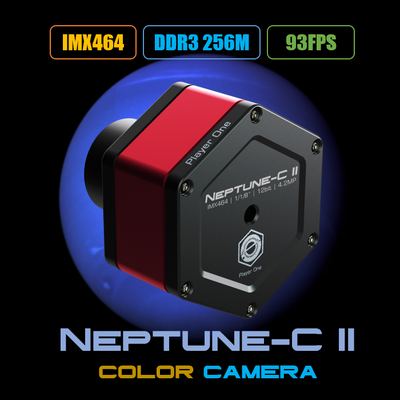

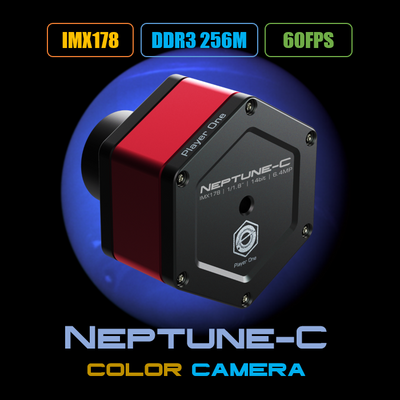

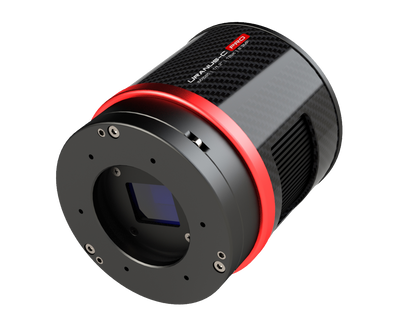

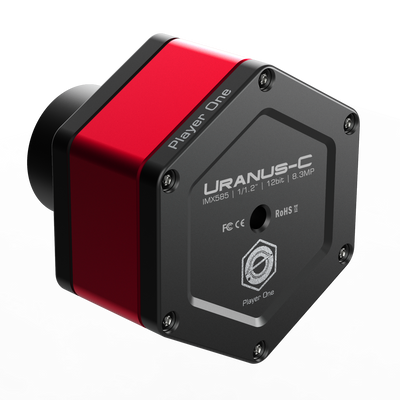

| Small (1/1.2") | ~12 mm | IMX585, IMX178 | Uranus-C, Neptune-C | Planets + compact DSO |
| Medium (1"โ1.2") | ~16 mm | IMX533, IMX464 | ASI533, Saturn-C | Deep-sky with short refractors |
| 4/3" Format | 21.6 mm | IMX294 | ASI294MC/MM Pro | Wide-field, forgiving guiding |
| APS-C | 28.3 mm | IMX571, IMX071 | ASI2600, ASI071 | Wide-field deep-sky, nebulae |
| Full Frame | 43.3 mm | IMX455 | ASI6200MM/MC Pro | Observatory, large mosaics |
Colour vs Monochrome: The Honest Truth
This is the question every astrophotographer wrestles with. Both systems produce stunning results โ but they suit very different workflows, budgets, and imaging goals.
Colour (OSC) Cameras
Uses a Bayer colour filter array over the sensor. Every pixel records one colour โ your software reconstructs a full-colour image by interpolating between neighbours. Quick, beginner-friendly, and dramatically simpler to use.
- Single exposure captures R, G and B simultaneously
- No filter wheel or filter library needed
- Perfect for broadband targets under darker skies
- Modern sensors (IMX585, IMX533, IMX571) deliver vibrant results
- Excellent for beginners and wide-field work
- Some sensitivity loss from Bayer filter (~50% vs mono)
- Less effective under heavy light pollution
Monochrome (Mono) Cameras
No Bayer filter โ every pixel collects every photon that reaches it. Combined with dedicated narrowband filters (Hฮฑ, OIII, SII), mono cameras can image through severe light pollution and produce extraordinary detail.
- Full sensor sensitivity โ every photon captured
- Narrowband imaging cuts through light pollution
- Required for true two-panel SHO (Hubble Palette) work
- Much higher contrast on emission nebulae
- Requires filter wheel + multiple filter sets (adds cost)
- 3โ5ร longer total exposure time per target
- More complex workflow and post-processing
Choosing the Right Brand
When cameras share the same Sony sensor, brand choice is really about ecosystem, software, build quality, and support. Here's an honest breakdown of every brand EDISLA carries.
ZWO ASI Series
The most popular dedicated astronomy camera brand worldwide. Seamless ASIAIR integration, polished ASIStudio software, and a massive community. Slightly ecosystem-locked โ but for good reason.
QHY Camera Series
Professional-grade build quality, robust cooling, and the broadest range from planetary to full-frame. Requires more technical knowledge for drivers and software but rewards patience with outstanding output.
Player One Astronomy
Outstanding planetary cameras and a rapidly growing deep-sky line. Excellent build quality, competitive pricing, and increasingly strong software support via third-party apps like NINA and SharpCap.
ToupTek / RisingCam
Often shares hardware with ZWO or QHY cameras at lower price points. Good for budget-constrained imagers. Firmware updates and long-term support can be inconsistent โ verify before buying.
Match Your Camera to Your Imaging Goal
The best camera is the one that matches your telescope, your sky, and your workflow โ not the one with the most impressive spec sheet. Here's how to think about it by use case.
๐ Lunar, Planetary & Solar
- Small sensor, high frame rate
- IMX224 (ASI224MC) or IMX462 (Mars-C, Neptune-C)
- Cooling optional โ short exposures only
- USB 3.0 essential for speed
- Budget: โน15,000โโน40,000
๐ Entry Deep-Sky (Short Refractors)
- IMX533 or IMX585 cooled OSC
- ASI533MC Pro, Player One Saturn-C, Uranus-C
- 1"โ1.2" sensor, pairs with 71โ100mm refractors
- ASIAIR-compatible recommended
- Budget: โน38,000โโน85,000
๐ญ Advanced APS-C Imaging
- IMX571 for colour, IMX571M for mono
- ASI2600MC/MM Pro, ASI2600 DUO
- Pairs with 400โ600mm apochromatic refractors
- 16-bit ADC for outstanding dynamic range
- Budget: โน1,20,000โโน2,00,000
๐๏ธ Observatory / Full-Frame
- IMX455 full-frame (ASI6200MM/MC Pro)
- Permanent or semi-permanent mount setup
- Large flat-field optics required (55mm+ image circle)
- 91% QE, 62MP, true 16-bit โ professional territory
- Budget: โน3,50,000+
๐ญ Find Your Perfect Camera
Answer 4 questions for a personalised recommendation from EDISLA's 81-camera collection.
Top Camera Picks from EDISLA's Collection
81 cameras across ZWO, QHY, and Player One โ here are the most important, recommended, and field-proven options across every imaging category.
๐ Planetary & High-Speed Cameras
VALUE
UPGRADE
๐ Entry & Mid-Range Deep-Sky
ENTRY
POPULAR
BEST BUY
SQUARE SENSOR
๐ฌ QHY Professional Cameras
GUIDE+PLANETARY
MONO+FILTER
โญ ZWO Flagship Deep-Sky Cameras
ALL-IN-ONE
๐ฏ Guide Cameras
DUAL-ROLE
81 Cameras. Every Budget. Expert Guidance.
EDISLA stocks India's most complete selection of dedicated astrophotography cameras โ from โน15,999 entry planetary cameras to โน4,49,999 professional full-frame systems. All prices include taxes and free shipping.
Browse All 81 Cameras at EDISLA.in โBeginner Traps to Avoid
After supporting hundreds of Indian astrophotographers, EDISLA's team has seen the same mistakes made repeatedly. Here are the eight most common and how to sidestep them.
- Overspending on Camera, Underspending on MountThe mount is the most critical component. A โน50,000 camera on a shaky mount produces worse results than a โน25,000 camera on a solid, well-guided GEM. Budget at least 40% of your total rig cost on the mount.
- Ignoring Ecosystem Lock-InZWO cameras work beautifully within the ASIAIR ecosystem. But if you later switch to QHY, Player One, or want to use NINA on Windows, your ASIAIR becomes less relevant. Think about your long-term software workflow before committing.
- Buying Ultra-Cheap Unverified CamerasCameras from unknown brands claiming high specs at very low prices often have poor cooling, inaccurate QE measurements, no firmware updates, and no India support. Stick to brands EDISLA carries and can support post-sale.
- Mismatching Sensor and TelescopeA full-frame sensor on a telescope with a 28mm image circle will show heavy vignetting. Always check that your telescope's image circle exceeds your sensor diagonal โ typically by at least 10%.
- Skipping Software Compatibility ChecksBefore buying, verify your camera works with your preferred software โ NINA, ASIStudio, SharpCap, or ASIAIR. QHY and Player One cameras are not natively supported by ASIAIR. Check compatibility lists before you buy.
- Neglecting Calibration FramesA cooled camera without darks, flats, and bias frames will underperform compared to a cheaper camera with proper calibration. Calibration frames matter more than the camera model โ build the habit from day one.
- Ignoring Indian Climate ConditionsIndia's humidity, monsoon condensation, and temperature swings demand proper dew management. Always budget for dew heater bands, a dew shield, and โ for cooled cameras โ verify the sensor window heating is active.
- Choosing Mono Before You're ReadyMonochrome cameras are powerful but demand a filter wheel, multiple filter sets, 3โ5ร more exposure time per target, and significantly more complex processing. Start with a quality colour camera โ mono can always come later when your workflow is solid.
