Askar 111F Flat-Field
Askar 111F Flat-Field
In stock
Couldn't load pickup availability
- RazorPay Secure Payment & EMI
- All India Fast & Free Shipping
- Replacement Guarantee
Product introduction
口径111mm
111mm Aperture
焦距766mm
766mm Focal Length
4片式APO设计
Quadruplet Air-Spaced APO
ED玻璃
ED Glass
全画幅对应
Supporting Full Frame
无需平场镜
No Need for Flattener
无需计算后截距
拍摄即接即用
No Need to Calculate the Backfocus
可伸缩遮光罩
Retractable Lens Hood
360度旋转器
Rotator
2个寻星镜基座
2 Finder Bases
3英寸有齿
（R&P）调焦器
3" Large Rack- Pinion Focuser
1:10微调精密
1:10 Fine Adjustment
1.25英寸/2英寸目镜接口
1.25"/2" Visual Adapter
300mm窄版鸠尾板
300mm Vixen Dovetail Plate
摄影延长管
4-piece Photographic Adapters

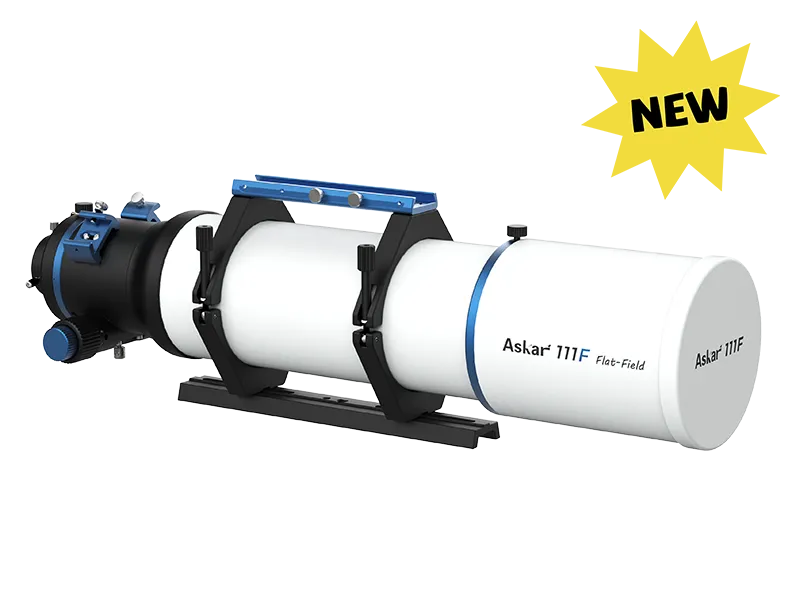

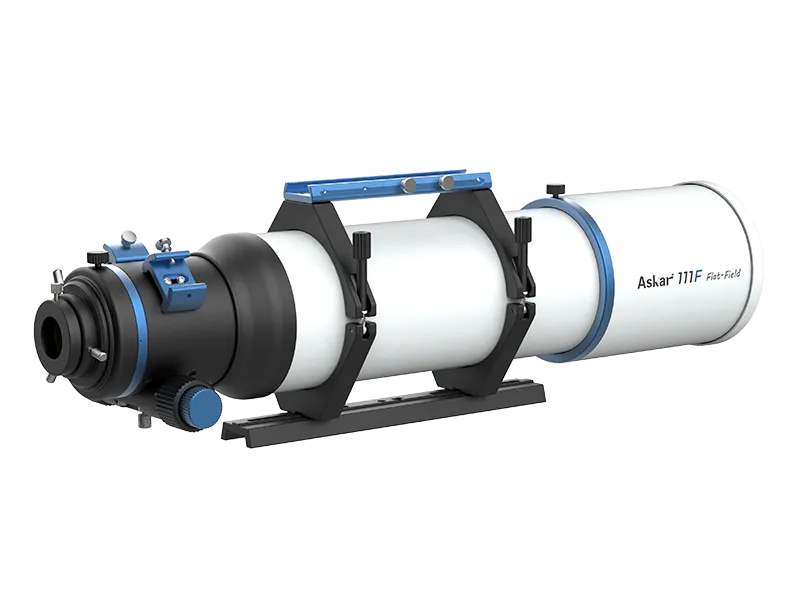

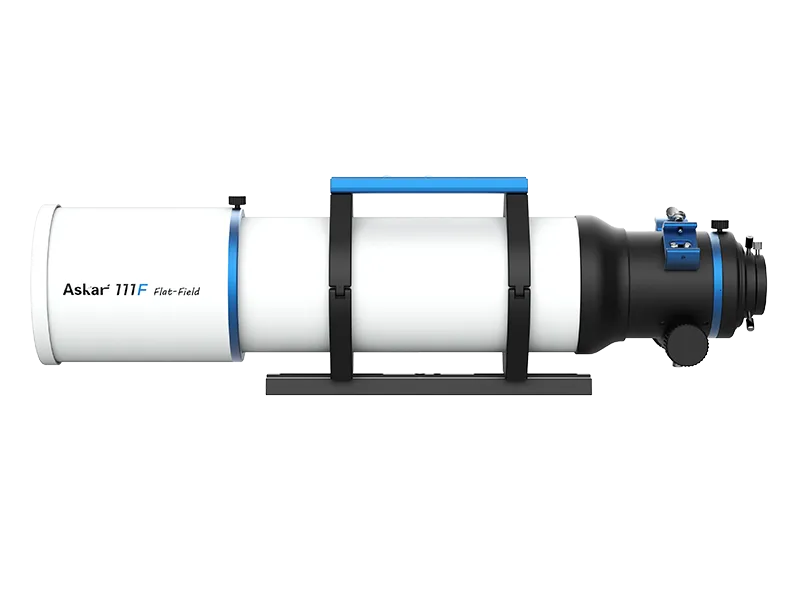

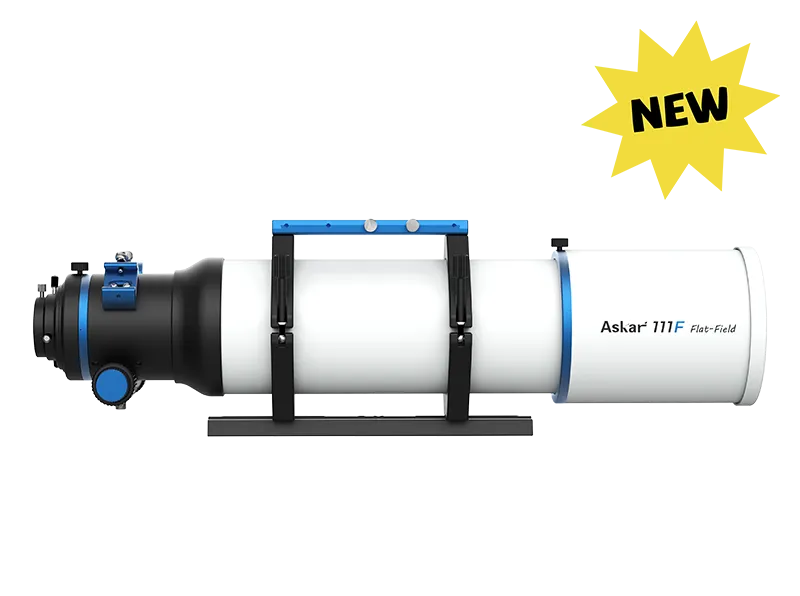

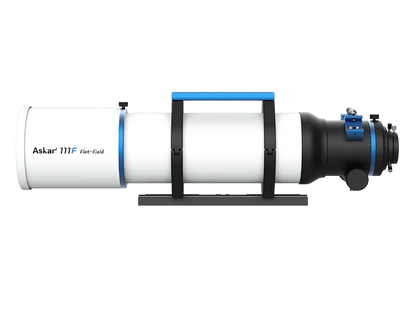

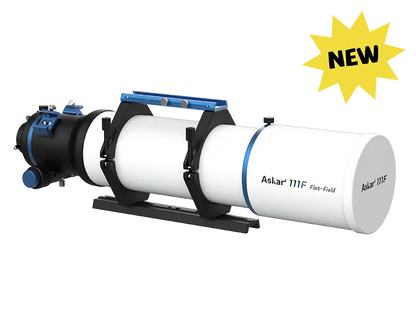

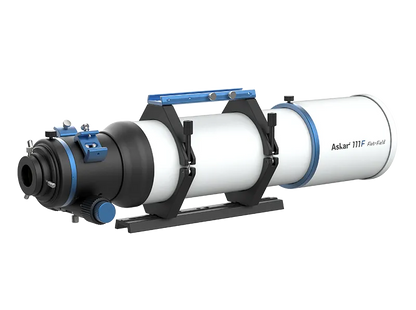

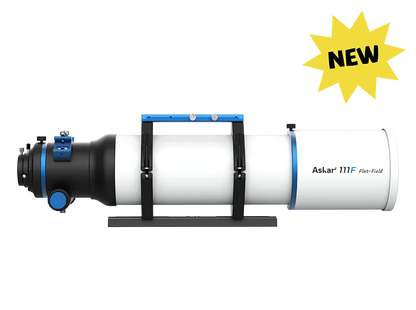

The Askar 111F has 111mm aperture, 766mm focal length, and a native focal ratio of 6.9, suitable for various uses including astrophotography and daily photography.
The Askar 111F adopts a quadruplet lens design (three elements in the front, one in the rear), which includes an ED glass to effectively reduce chromatic aberration.
The main tube features a built-in baffle that further blocks stray light and enhances image quality. The Askar 111F supports full-frame imaging, delivering delicate and sharp stars across the frame.
Featuring a self-flattened design, users can shoot directly after connecting imaging accessories and achieving focus. This eliminates the need for purchasing additional flatteners or calculating back focus, offering simple operation and a smooth experience.

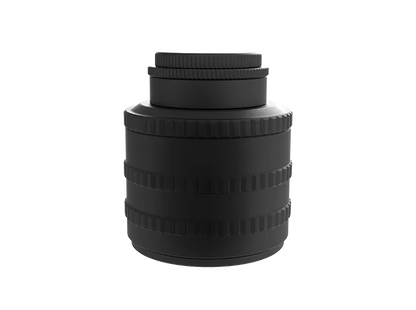

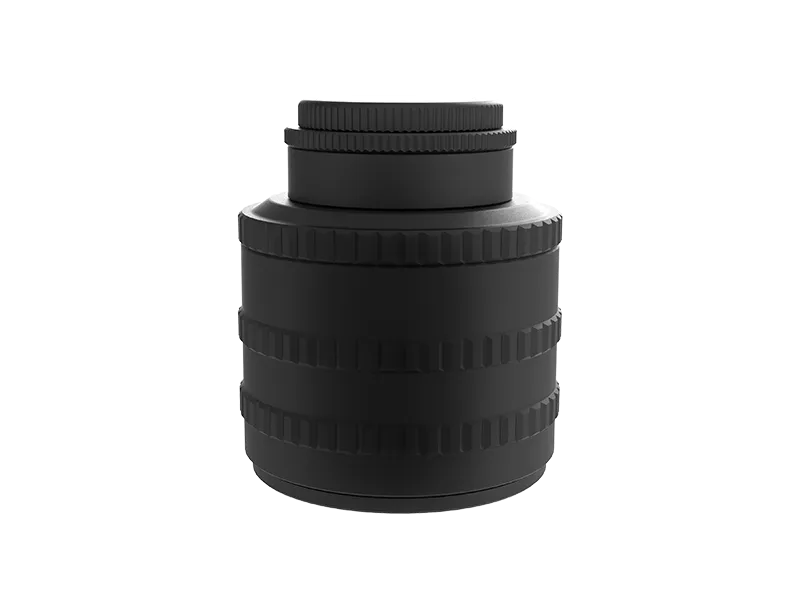

The Askar 111F comes standard with a photographic extension tube, which is designed with a 2-inch filter thread. It includes adapters with M48*0.75 and M54*0.75 specifications, ensuring compatibility with DSLR cameras or astronomy cameras to meet diverse needs.
Adhering to Askar's consistent design philosophy, the Askar 111F emphasizes detail and user experience, striving to reduce the cost of use. The lens hood is retractable, further shortening the overall length and enhancing portability. The lens tube utilizes high-quality CNC machining and painting processes. Its appearance continues the F-series' classic blue and white color scheme, presenting a simple and elegant aesthetic.
The handle of the Askar 111F is equipped with a finder base slot. Additionally, both sides of the focuser feature finder bases. This not only allows for changing the finder scope position without disassembly but also provides more locations for installing other astronomical accessories.
The Askar 111F is equipped with a 3-inch rack-and-pinion dual-speed focuser supporting 1:10 fine adjustment. The fine adjustment knob includes a protective cap to prevent damage. The rear of the focuser connects to a 360° graduated rotator, allowing for precise angle adjustments.
The dovetail plate is a 300mm long Vixen-style plate, equipped with 1/4-inch and 3/8-inch screw holes, enabling direct connection to a tripod.
The Askar 111F, a multi-purpose self-flattened astrograph, starts your versatile deep-sky exploration journey with exceptional cost-effectiveness.
Specifications
| Parameters | ||
| Aperture size | 111mm | |
| Focal length | 766mm | |
| Focal ratio | f/6.9 | |
| Objective lens | Quadruplet air-spaced APO(including one ED glass) | |
| Image circle | 44mm | |
| Maximum accessory connection (with the focuser fully retreated) |
Imaging mode: 73mm (from the base of M48×0.75 male thread） 91mm（from the base of M54×0.75 male thread) |
Observing mode: 132mm（from the end of 1.25" eyepiece holder） 142mm（from the end of 2" eyepiece holder） |
| Minimum accessory connection (with the focuser fully extended) |
Imaging mode: 43mm (from the base of M48×0.75 male thread） 61mm（from the base of M54×0.75 male thread) |
Observing mode: 102mm（from the end of 1.25" eyepiece holder） 112mm（from the end of 2" eyepiece holder） |
| Total length |
664mm(including 1.25" adapter as dew shield contracted） 751mm(including 1.25" adapter as dew shield fully stretched） 728mm(including the photographic adapter as dew shield contracted） 815mm(including the photographic adapter as dew shield fully stretched） |
|
| Focuser travel length | 30mm | |
| Net weight | 5.74kg | |
| Gross weight (Including tube ring&dovetail plate) | 6.76kg | |
| Rear-end thread type |
M78×1-M54×0.75 M54×0.75-M54×0.75 M54×0.75-M48×0.75 (with M48×0.75 filter thread) |
|
| Standard package items | A 111F OTA，a pair of tube rings, a handle, a 300mm Vixen dovetail plate,a set of photographic adapters | |
| Product Size Diagram |
| Connection Diagram |
| The Locking Screw Position Diagram |
| Electronic Focuser Assembly Diagram |
| Optical Path Diagram |
| Spot Diagram |
