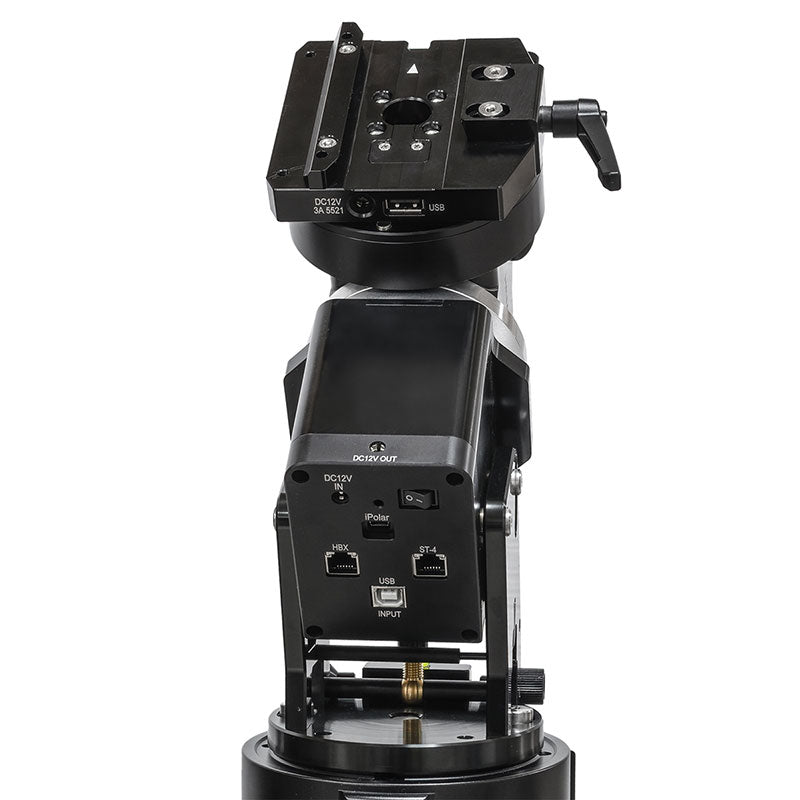

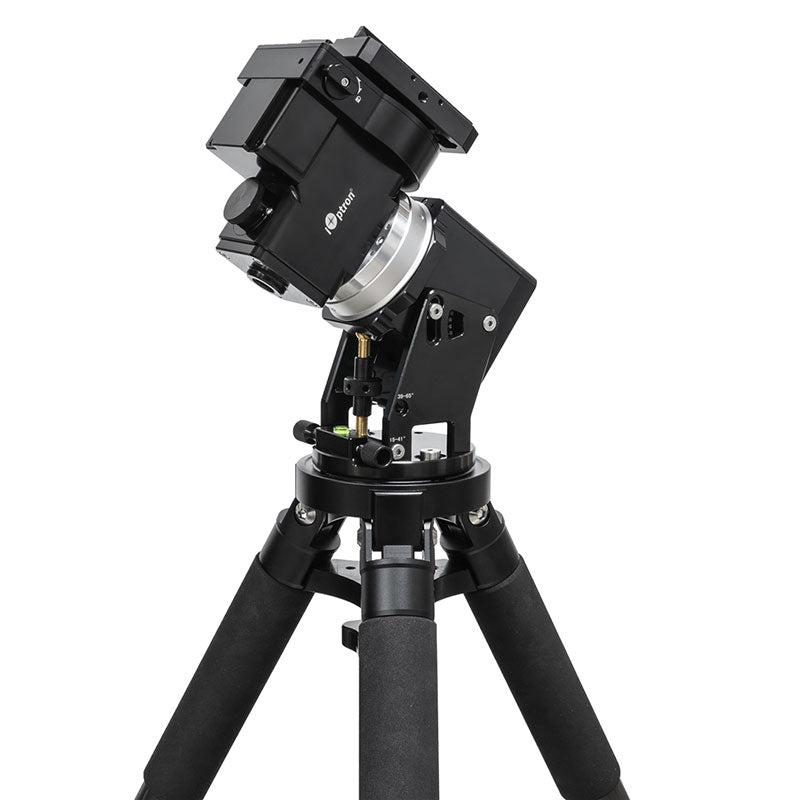

iOptron HEM27 EQ Hybrid SWG Mount

iOptron HEM27 EQ Hybrid SWG Mount

Regular price Rs. 179,999.00
Regular price Sale price Rs. 179,999.00
Sale Sold out
Taxes included. Free Shipping (Read our policies here)

In stock

Quantity
  • RazorPay Secure Payment & EMI
  • All India Fast & Free Shipping
  • Replacement Guarantee

Introducing the HEM27 and the HEM27EC, iOptron’s revolutionary hybrid strain wave drive mounts. These light weight, high payload tiny titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 8.15lbs with a payload capability 29.74lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi decade experience creating precision mounts, the HEM27 brings this vision to reality.

Utilizing state of the art strain wave drive technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM27s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features include an electronic friction break to safely stop movement during a planned or unplanned power interruption.

A HEM27 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

The HEM27EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.

Mount Hybrid Equatorial Mount
RA gear system StrainWave 17
DEC gear system Backlash-free worm/belt system
RA reduction ratio 480:1
Payload w/o CW * 29.74 lbs (13.5kg)
Mount weight 7.49lbs (3.4kg) w/o dovetail saddle, 8.15lbs (3.7kg) with dovetail saddle
Payload/Mount weight 3.65
Payload with CW * 44 lbs (20kg)
Period 360 second
Drive motor Stepper motor
Structure Material All metal, CNC machined
Exterior finish Anodized black
Latitude adjustment range 15º ~ 65º
Azimuth adjustment range ± 5º
Polar Scope No
Level indicator Level bubble
Control system GOTONOVA/Commander
Hand Controller Go2Nova® 8409 with ~212,000 objects database
Tracking Automatic
Maximum slew speed 6º/sec
Power consumption 0.5A(Tracking), 1A(GOTO)
Power requiremention DC12V-5A (5.5/2.5mm DC plug)
AC adapter 100V ~ 240V (included, indoor use only)
Cable No moving/wrapping
Cable management 2X12V (4A max.), 1X USB2.0
Power off brake Electronic friction brake
Wi-Fi Built-in
Communication port Yes (Wi-Fi and USB)
Autoguide port Yes (ST-4 compatible)
Firmware upgrade Yes
Dovetail saddle Vixen & Losmandy
Tripod Optional
Counterweight shaft SS Φ20X200mm, M16 thread (Optional)
Counterweight 10 lbs (4.5kg)(Optional)
Operation temperature -20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC)
Warranty Two year limited
