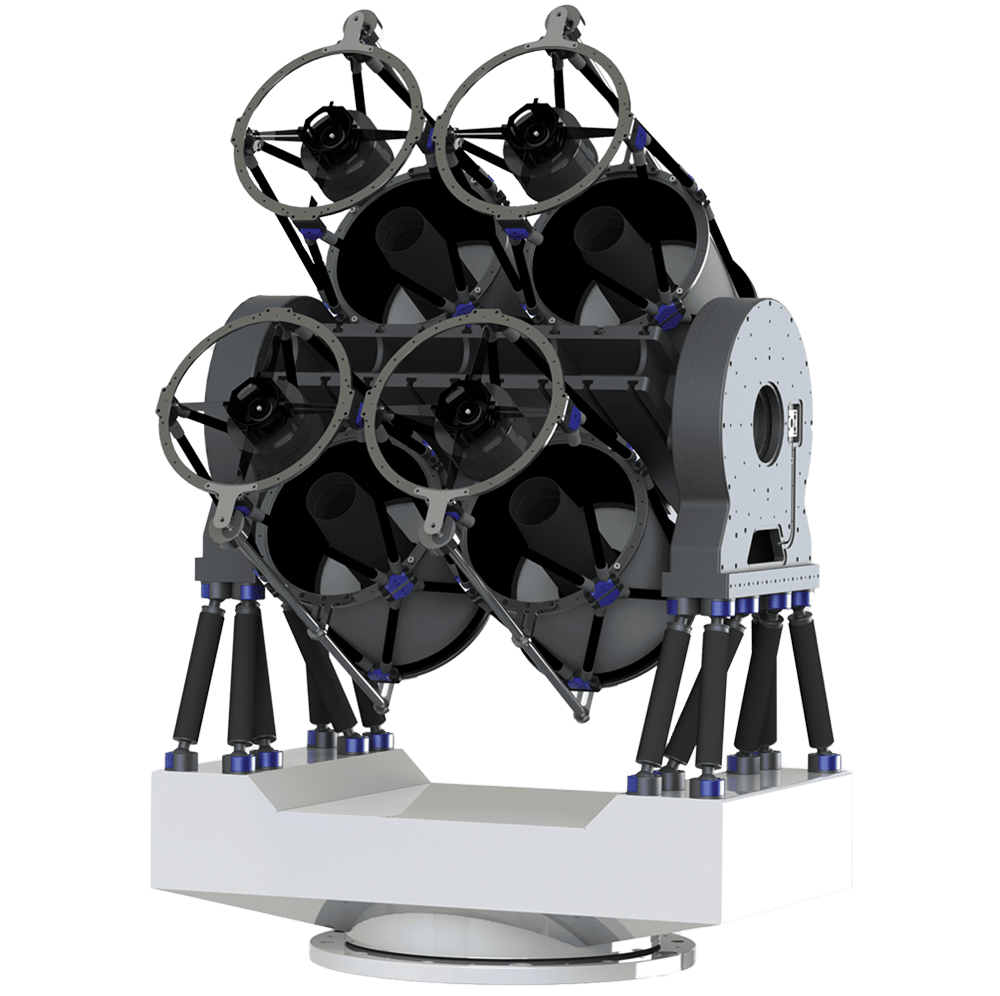

Planewave 1000 Series Direct-Drive Telescope Gimbal
Planewave 1000 Series Direct-Drive Telescope Gimbal
Out of stock
Couldn't load pickup availability
- RazorPay Secure Payment & EMI
- All India Fast & Free Shipping
- Replacement Guarantee
The PlaneWave 1000 Series Gimbal is engineered to meet the highest standards of precision and robustness and is designed specifically for top-tier astrophotography, extensive astronomical research, and free-space optical communication. As a key component of our advanced mounting solutions, this gimbal incorporates state-of-the-art technology to provide a sturdy and precise platform for observation.
Key Features Overview
The 1000 Series Gimbal stands out with its exceptional specifications and features:
- 1200 lbs load capacity
- High-torque direct-drive motors for zero backlash, zero periodic error, and rapid slewing capabilities up to 50 degrees per second
- High-resolution encoders for ultra-precise positioning
- Enhanced ruggedization and weatherization options
- Coudé path compatibility and continuous azimuth rotation via slip rings
- Configurable for diverse operational goals
- Gimbal used in the CDK1000 and RC1000 telescope systems
-
About the 1000 Series Direct-Drive Telescope Gimbal
Core Features of the 1000 Series Gimbal
High-Torque Direct-Drive Motors
The 1000 Series Gimbal is equipped with PlaneWave’s high-torque direct-drive motors, ensuring smooth, swift, and virtually silent operation. This feature is vital for accurately tracking celestial objects and satellites with minimal vibration and maximal precision, supporting substantial payloads.
High-Resolution Encoders
Equipped with high-resolution encoders on each axis, the 1000 Series Gimbal delivers exceedingly precise positioning, indispensable for capturing sharp, detailed celestial images and conducting comprehensive scientific observations.
Zero Backlash and Periodic Error
The design of the 1000 Series Gimbal eliminates backlash and periodic error, enabling consistent and reliable tracking that improves astrophotography outcomes and supports intricate observational studies.
Advanced Customization Options
With additional ruggedization and weatherization, Coudé path compatibility, and slip rings for continuous azimuth rotation, the 1000 Series Gimbal can be customized to meet specific research and observational needs across a variety of environments.
GPS/PTP Synchronized Encoder Time-Stamping
This feature incorporates GPS/PTP (Precision Time Protocol) synchronized time-stamping with the encoder readings, significantly enhancing the accuracy of positional data essential for high-level research and precise tracking applications.
Application-Specific Advantages
Astrophotography
With its robust load capacity and high slew speeds, the 1000 Series Gimbal enables astrophotographers to quickly and smoothly reposition heavy equipment, capturing stunning images of the cosmos with ease and precision.
Research
Researchers will appreciate the 1000 Series Gimbal’s precise tracking and configurable features, perfect for detailed celestial observations and data collection, especially in challenging environments where equipment flexibility and operational reliability are crucial.
Free-Space Optical Communication (FSO)
The 1000 series gimbal precise positioning, and large weight capacity make it highly suitable for FSOC applications. These features ensure stable and continuous optical link alignment, which is crucial for maintaining high-quality communication channels in variable outdoor conditions.
Specifications
1000 Series Direct-Drive Telescope Gimbal
SpecificationsMax. Load Capacity 1200 (544.3108 kg) Motor High-torque direct drive motors Tracking Accuracy Tracking speeds > 10 degrees/second Slew Rate > 50 degrees/second Power Requirement 115VAC 15A input: no need for 3-phase power
