Planewave

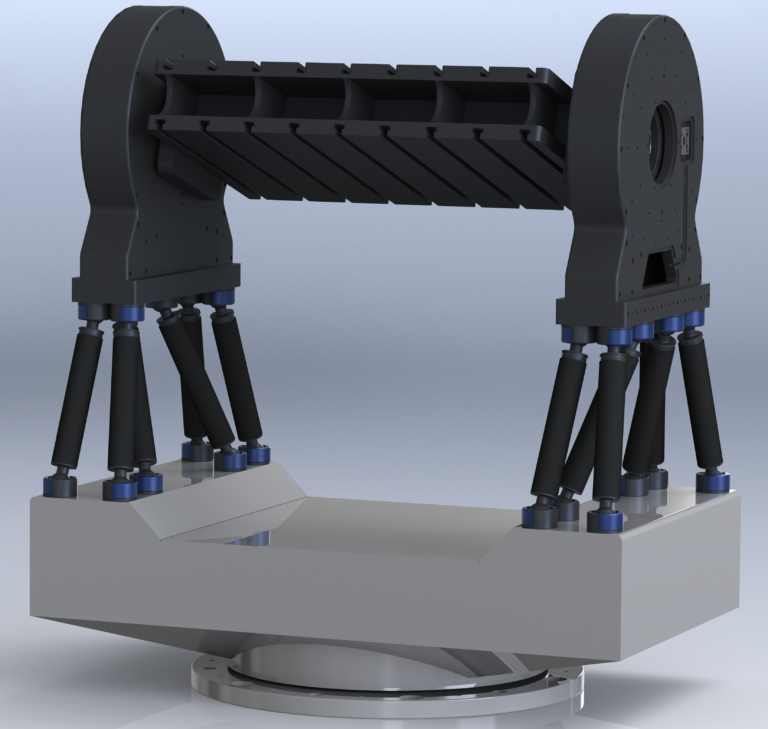

Planewave 700 Series Direct-Drive Telescope Gimbal

Planewave 700 Series Direct-Drive Telescope Gimbal

Regular price Rs. 12,599,999.00
Regular price Sale price Rs. 12,599,999.00
Sale Sold out
Tax included. Free Shipping (Read our policies here)

Out of stock

  • RazorPay Secure Payment & EMI
  • All India Fast & Free Shipping
  • Replacement Guarantee

The PlaneWave 700 Series Gimbal is engineered to embody excellence and is designed to fulfill the sophisticated requirements of advanced astrophotography, complex astronomical research, and free-space optical communication. This gimbal, a prominent part of our advanced mounting solutions, utilizes cutting-edge technology to offer a robust and precise observational platform.

Key Features Overview

The 700 Series Gimbal is distinguished by its robust specifications and features:

  • 800 lbs load capacity
  • High-torque direct-drive motors for zero backlash, zero periodic error, and rapid slewing capabilities up to 50 degrees per second
  • High-resolution encoders for ultra-precise positioning
  • Enhanced ruggedization and weatherization options
  • Coudé path compatibility and continuous azimuth rotation via slip rings
  • Configurable for diverse operational goals
  • Gimbal used in CDK700 and RC700 telescope systems
  • About the 700 Series Direct-Drive Telescope Gimbal

    Key Features Overview

    The 700 Series Gimbal is distinguished by its robust specifications and features:

    • 800 lbs load capacity
    • High-torque direct-drive motors for zero backlash, zero periodic error, and rapid slewing capabilities up to 50 degrees per second
    • High-resolution encoders for ultra-precise positioning
    • Enhanced ruggedization and weatherization options
    • Coudé path compatibility and continuous azimuth rotation via slip rings
    • Configurable for diverse operational goals

    Core Features of the 700 Series Gimbal

    High-Torque Direct-Drive Motors

    The 700 Series Gimbal is equipped with PlaneWave’s high-torque direct-drive motors, ensuring smooth, swift, and virtually silent operation. This feature is crucial for tracking celestial objects and satellites with minimal vibration and supreme accuracy, even under the load of substantial payloads.

    High-Resolution Encoders

    Featuring high-resolution encoders on each axis, the 700 Series Gimbal offers exceptionally precise positioning, critical for capturing sharp, detailed celestial images and conducting rigorous scientific observations.

    Zero Backlash and Periodic Error

    The design of the 700 Series Gimbal eliminates backlash and periodic error, facilitating consistent and reliable tracking that enhances astrophotography and supports long-term observational studies.

    Advanced Customization Options

    With additional ruggedization and weatherization, Coudé path compatibility, and slip rings for continuous azimuth rotation, the 700 Series Gimbal can be tailored to meet specific research and observational requirements across various environments.

    GPS/PTP Synchronized Encoder Time-Stamping

    This feature integrates GPS/PTP (Precision Time Protocol) synchronized time-stamping with the encoder readings, enhancing the accuracy of positional data crucial for high-level research and precise tracking applications.

    Application-Specific Advantages

    Astrophotography

    With its robust load capacity and high slew speeds, the 700 Series Gimbal allows astrophotographers to reposition heavy equipment quickly and smoothly, capturing breathtaking images of the cosmos with ease and efficiency.

    Research

    Researchers will find the 700 Series Gimbal’s precise tracking and configurable features ideal for detailed celestial observations and data collection, particularly in demanding environments where equipment adaptability and operational reliability are paramount.

    Free-Space Optical Communication (FSO)

    The 700 series gimbal precise positioning, and large weight capacity make it highly suitable for FSOC applications. These features ensure stable and continuous optical link alignment, which is crucial for maintaining high-quality communication channels in variable outdoor conditions.

    Specifications

    700 Series Direct-Drive Telescope Gimbal

    Specifications

    Max. Load Capacity 800 lbs load capacity with 170 footpounds of torque (AZ)
    Motor High-torque direct-drive motors - no gears, zero backlash, zero periodic error, zero maintenance
    Tracking Accuracy Tracking speeds > 10 degrees/second
    Slew Rate Slew speeds > 50 degrees/second
View full details
