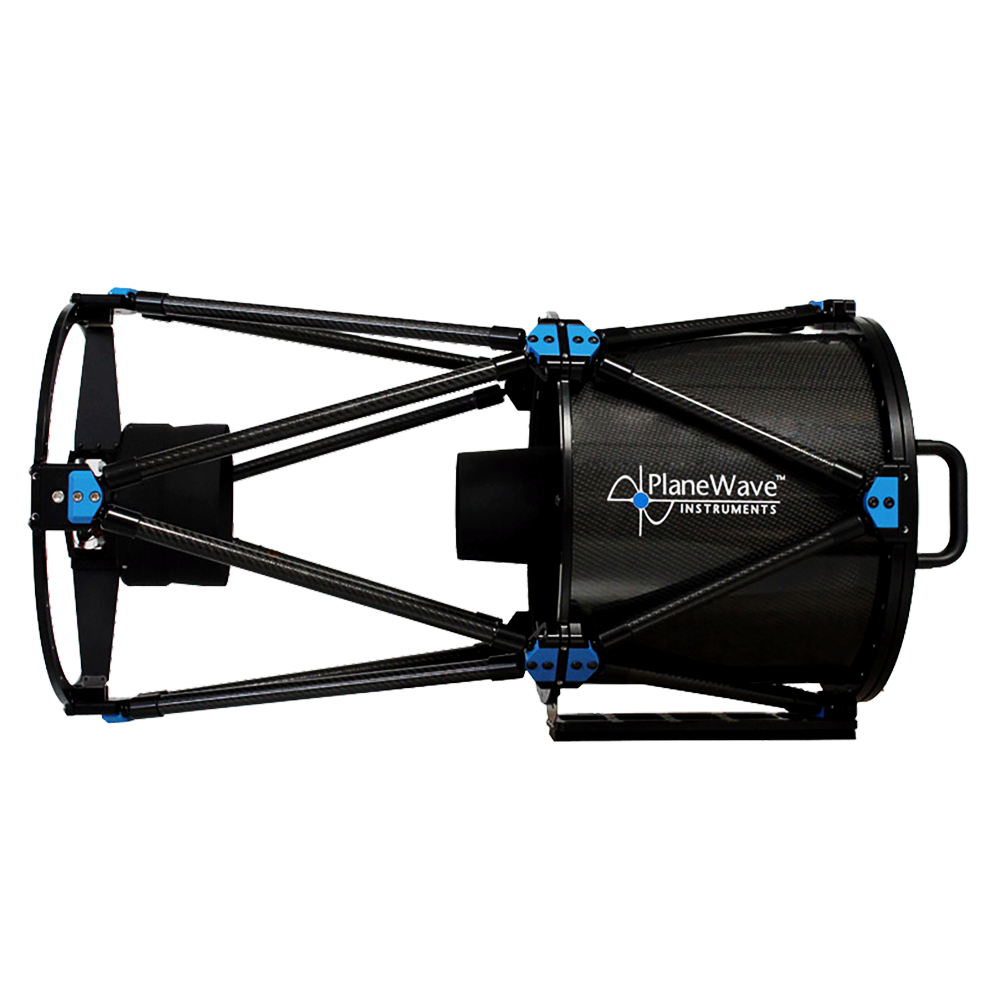

Planewave IRDK14 (Infrared Optimized) Optical Tube Assembly
Planewave IRDK14 (Infrared Optimized) Optical Tube Assembly
Out of stock
Couldn't load pickup availability
- RazorPay Secure Payment & EMI
- All India Fast & Free Shipping
- Replacement Guarantee
The IRDK14 from PlaneWave Instruments is a precisely engineered optical system designed for high performance in infrared wavelengths. It is an excellent tool for advanced astronomical research and remote sensing applications, offering superior performance for infrared imaging.
Key Features Overview
The IRDK14 comes with impressive specifications tailored for infrared optimization:
- Gold-coated mirrors optimized for high reflectivity in infrared wavelengths (ultraviolet optimization available)
- 14-inch (356 mm) aperture
- 2563 mm focal length
- f/7.2 focal ratio
- 282mm back focus from mounting surface
- 70mm image circle
- Rock-solid fused silica mirrors with low thermal expansion
- Lightweight and rigid carbon fiber optical tube assembly
-
About the IRDK14 (Infrared Optimized) Optical Tube Assembly
IRDK14’s Key Features
Large Aperture and Optimized Focal Ratio
The IRDK14 features a 356 mm aperture and an f/7.2 focal ratio, enhancing its capacity to gather infrared light effectively. This setup is ideal for detailed infrared observations and long-exposure imaging, providing exceptional light-gathering capabilities.
Specialized Optical Design for Infrared
The Dall-Kirkham optical design of the IRDK14 is optimized for infrared wavelengths. There are no refractive lenses, only reflective fused silica mirrors. The reflective coatings are a protected gold with better than 98% reflectivity from .65 microns (650nm) to 5 microns (5000nm), making it well-suited for infrared astronomy or LIDAR applications. UV-optimized coatings can also be provided, and potential customers are encouraged to contact our technical sales team to discuss UV optimization.
Robust Mechanical Structure
Constructed using carbon fiber, the optical tube of the IRDK14 offers durability and stability with minimal thermal expansion. This design ensures consistent performance under various environmental conditions, making it suitable for intensive scientific applications.
Advanced Thermal Management
The IRDK14 includes cooling fans and a system prepared for Delta-T applications, promoting rapid thermal equilibrium. This feature is critical for minimizing air turbulence within the tube, thus reducing potential image distortion and enhancing overall imaging quality.
Integrated Dew Control
Infrared observations are prone to condensation, but the IRDK14 tackles this with advanced dew prevention technology. Heater pads, controlled via PlaneWave’s software, ensure the optical surfaces stay clear from dew, maintaining consistent and clear imaging performance.
Application-Specific Benefits
Infrared Astronomy
The IRDK14 excels in infrared astronomy, where its significant aperture and infrared-optimized optics allow for precise observation of celestial objects in infrared light. This capability is essential for studying astrophysical phenomena invisible to the naked eye or standard optical wavelengths.
Advanced Research and LIDAR Applications
With its specialized design and infrared optimization, the IRDK14 is a robust platform for advanced scientific research, including LIDAR and other remote sensing applications.
Aperture14 in (356 mm)Focal Length101 in (2563 mm)Focal Ratiof/7.2Central Obstruction23.5% by surface area; 48.5% by diameterBack Focus from Mounting Surface11.09 in (282 mm)Weight48 lbs (22 kg)OTA Length35 in (889 mm)Upper CageCarbon Fiber TrussLower CageCarbon fiber truss and light shroud
Diameter6.5 in (165 mm)MaterialFused silica (quartz)ShapeSphericalCoatingProtected Gold
Optical Diameter 14 in (355.6 mm) Outer Diameter 14.5 in (468.3mm) Shape Prolate Ellipsoid Material Fused Silica (quartz) Coating Protected Gold Included Items Heating Elements for Dew Prevention - The heating pads on the primary and secondary mirror require the 600195 Delta-T controller sold separately OTA Cover - To protect the primary mirror and inside of the optical tube Flashdrive - Contains software and instructions for collimation and spacing the primary to secondary mirror Wrench Set (5812A35) - Standard hex wrenches (European orders only)
