Planewave IRDK20 (Infrared Optimized) Optical Tube Assembly

Planewave IRDK20 (Infrared Optimized) Optical Tube Assembly

Regular price Rs. 3,759,999.00
Regular price Sale price Rs. 3,759,999.00
Sale Sold out
Tax included. Free Shipping (Read our policies here)

Out of stock

  • RazorPay Secure Payment & EMI
  • All India Fast & Free Shipping
  • Replacement Guarantee

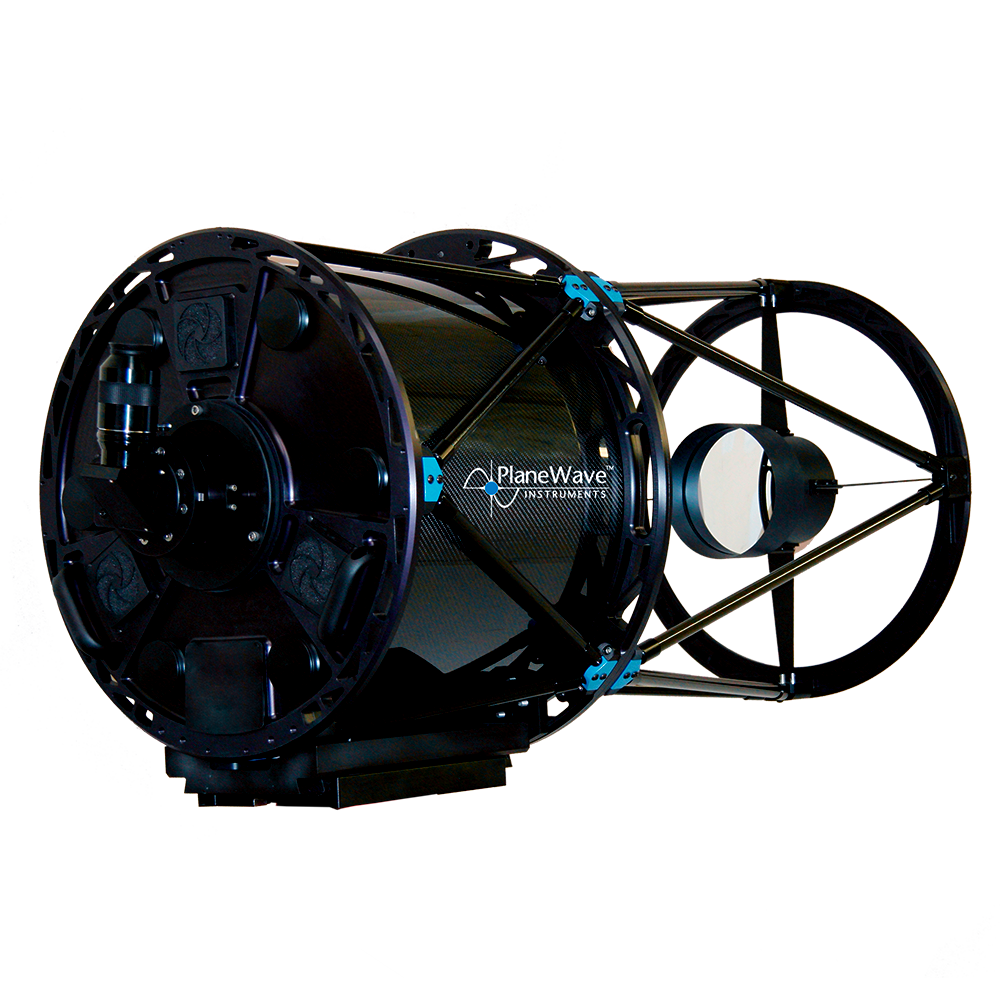

IRDK20 Infrared Optimized Optical Tube Assembly

The IRDK20 from PlaneWave Instruments is a finely engineered optical system designed specifically for precision in infrared wavelengths. It is an excellent tool for advanced astronomical research and remote sensing applications, providing outstanding performance in infrared imaging.

Key Features Overview

The IRDK20 boasts impressive specifications designed for infrared optimization:

  • Gold-coated mirrors optimized for high reflectivity in infrared wavelengths (ultraviolet optimization available)
  • 20-inch (508 mm) aperture
  • 3454 mm focal length
  • f/6.8 focal ratio
  • 224 mm back focus from mounting surface
  • 52 mm image circle
  • Rock-solid fused silica mirrors with low thermal expansion
  • Lightweight and rigid carbon fiber optical tube assembly
  • About the IRDK20 (Infrared Optimized) Optical Tube Assembly

    IRDK20’s Key Features

    Large Aperture and Optimized Focal Ratio

    The IRDK20 features a substantial 508 mm aperture and an f/6.8 focal ratio, enhancing its ability to gather infrared light effectively. This setup is ideal for detailed infrared observations and long-exposure imaging, offering excellent light-gathering capabilities.

    Specialized Optical Design for Infrared

    The Dall-Kirkham optical design of the IRDK20 is optimized for infrared wavelengths. There are no refractive lenses, only reflective fused silica mirrors. The reflective coatings are a protected gold with better than 98% reflectivity from .65 microns (650nm) to 5 microns (5000nm), ideal for infrared astronomy or LIDAR applications. UV-optimized coatings can also be provided, so please contact our technical sales team to discuss UV optimization.

    Robust Mechanical Structure

    Constructed using carbon fiber, the optical tube of the IRDK20 provides durability and stability with minimal thermal expansion. This design ensures consistent performance across varying environmental conditions, making it suitable for intensive scientific applications.

    Advanced Thermal Management

    The IRDK20 includes cooling fans and a system prepared for Delta-T applications, promoting rapid thermal equilibrium. This setup is crucial for minimizing air turbulence within the tube, thus reducing potential image distortion and enhancing overall imaging quality.

    Integrated Dew Control

    Infrared observations can be prone to condensation, but the IRDK20 addresses this with advanced dew prevention technology. Heater pads, controlled via PlaneWave’s software, ensure the optical surfaces remain clear from dew, maintaining consistent and clear imaging performance.

    Application-Specific Benefits

    Infrared Astronomy

    The IRDK20 excels in infrared astronomy, where its large aperture and infrared-optimized optics allow for detailed observation of celestial objects in infrared light. This capability is crucial for studying astrophysical phenomena invisible to the naked eye or standard optical wavelengths.

    Advanced Research and LIDAR Applications

    With its specialized design and infrared optimization, the IRDK20 is a robust platform for advanced scientific research, including LIDAR applications.

    Aperture 20 in (508 mm)
    Focal Length 136 in (3454 mm)
    Focal Ratio f/6.8
    Central Obstruction 39% of the Primary Mirror Diameter
    Back Focus from Mounting Surface 8.81 in (224 mm)
    Weight 140 lbs (63.5 kg)
    OTA Length 47 in (1194 mm)
    Upper Cage Carbon Fiber Truss
    Lower Cage Carbon Fiber Truss with Carbon Fiber Light Shroud

    Diameter 7.5 in (191 mm)
    Material Fused silica (quartz)
    Shape Spherical
    Coating Protected Gold
    Optical Diameter 20 inch (508 mm)
    Outer Diameter 20.5 in (521 mm)
    Shape Prolate Ellipsoid
    Material Fused Silica (quartz)
    Coating Protected Gold
    Included Items Heating Elements for Dew Prevention - The heating pads on the primary and secondary mirror require the 600195 Delta-T controller sold separately
    OTA Cover - To protect the primary mirror and inside of the optical tube
    Flashdrive - Contains software and instructions for collimation and spacing the primary to secondary mirror
    Wrench Set (5812A35) - Standard hex wrenches (European orders only)
View full details
