Planewave IRDK24 (Infrared Optimized) Optical Tube Assembly
Planewave IRDK24 (Infrared Optimized) Optical Tube Assembly
Out of stock
Couldn't load pickup availability
- RazorPay Secure Payment & EMI
- All India Fast & Free Shipping
- Replacement Guarantee
$69,000.00

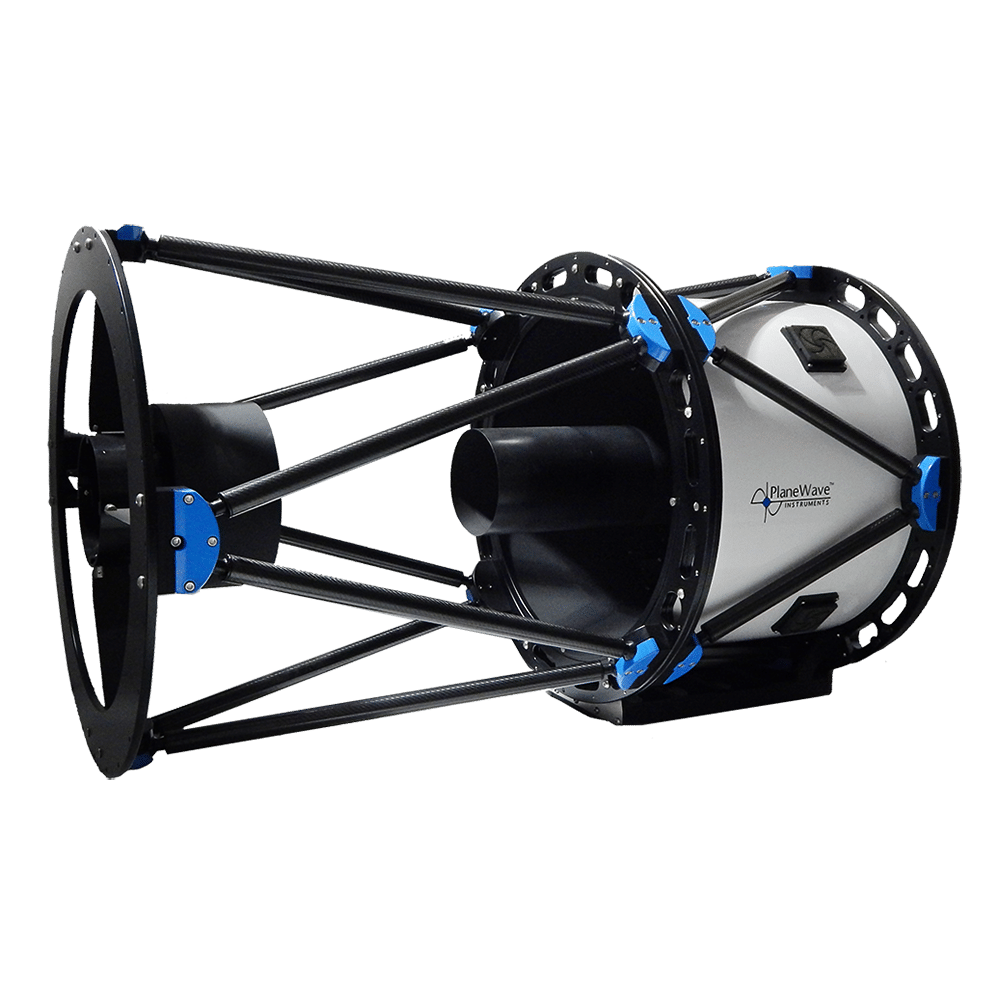

IRDK24 Infrared Optimized Optical Tube Assembly
The IRDK24 from PlaneWave Instruments represents a pinnacle of specialized engineering designed specifically for applications that require high precision in infrared wavelengths. Ideal for advanced astronomical research, the IRDK24 ensures unparalleled performance in infrared imaging.
Key Features Overview
- Gold-coated mirrors optimized for high reflectivity in infrared wavelengths (ultraviolet optimization available)
- 24-inch (610 mm) aperture
- 3974 mm focal length
- f/6.5 focal ratio
- 364.46 mm back focus from mounting surface
- 70mm image circle
- Rock-solid fused silica mirrors with low thermal expansion
- Lightweight and rigid carbon fiber optical tube assembly
-
About the IRDK24 (Infrared Optimized) Optical Tube Assembly
Large Aperture and Optimized Focal Ratio
The IRDK24 features a generous 610 mm aperture paired with an f/6.5 focal ratio, enhancing its ability to capture light effectively. This combination is ideal for detailed infrared observations and long-exposure imaging, providing superb light-gathering capabilities.
Specialized Optical Design for Infrared
The Dall-Kirkham optical design of the IRDK24 is optimized for infrared wavelengths. There are no refractive lenses, only reflective fused silica mirrors. Reflective coatings are a protected gold with better than 98% reflectivity from .65 microns (650nm) to 5 microns (5000nm), ideal for infrared astronomy or LIDAR applications. UV-optimized coatings can also be provided, so please contact our technical sales team to discuss UV optimization.
Robust Mechanical Structure
Constructed using carbon fiber, the optical tube of the IRDK24 offers durability and stability with minimal thermal expansion. This design ensures consistent performance under varying environmental conditions, making it suitable for intensive scientific applications.
Advanced Thermal Management
The IRDK24 incorporates cooling fans and a system ready for Delta-T applications, facilitating rapid thermal equilibrium. This setup is crucial for minimizing air turbulence within the tube, thus reducing potential image distortion and enhancing overall imaging quality.
Integrated Dew Control
Infrared observations can be susceptible to condensation, but the IRDK24 addresses this with sophisticated dew prevention technology. Heater pads, controlled via PlaneWave’s software, ensure the optical surfaces remain clear from dew, thereby maintaining consistent and clear imaging performance.
Application-Specific Benefits
Infrared Astronomy: The IRDK24 is especially effective for infrared astronomy, where its large aperture and infrared-optimized optics allow for detailed observation of celestial objects in infrared light. This capability is essential for studying astrophysical phenomena invisible to the naked eye or standard optical wavelengths.
Advanced Research and LIDAR Applications: With its specialized design and infrared optimization, the IRDK24 is a robust platform for advanced scientific research, including LIDAR.
Aperture24 in (610 mm)Focal Length156 in (3974 mm)Focal Ratiof/6.5Central Obstruction47% of the primary mirror diameterBack Focus from Mounting Surface14.349 ih (364.46 mm)Weight240 lbs (108.9 kg)OTA Length56 in (1422 mm)Upper CageCarbon Fiber TrussLower CageCarbon Fiber Truss with Aluminum Light Shroud
Diameter 11 inch (280 mm) Material Fused Silica (quartz) Shape Spherical Coating Protected Gold Optical Diameter24 inch (610 mm)Outer Diameter24.5 in (622 mm)ShapeProlate EllipsoidMaterialFused Silica (quartz)CoatingProtected Gold
Included Items CDK24 Focus Spacer (240343-1) - This 5.539″ long spacer is installed between the backplate and the focuser to take up some of the CDK24’s extra backfocus and reduce the torque placed on the focuser mechanism. This spacer is sized such that the backfocus distance behind the focuser is 8.8″. Heating Elements for Dew Prevention - The heating pads on the primary and secondary mirror require the 600195 Delta-T controller sold separately Primary Mirror Cover - To protect the primary mirror Flashdrive - Contains software and instructions for collimation and spacing the primary to secondary mirror Wrench Set (5812A35) - Standard hex wrenches (European orders only)
