QHY367C Pro Astronomy Camera
QHY367C Pro Astronomy Camera
In stock
Couldn't load pickup availability
- RazorPay Secure Payment & EMI
- All India Fast & Free Shipping
- Replacement Guarantee

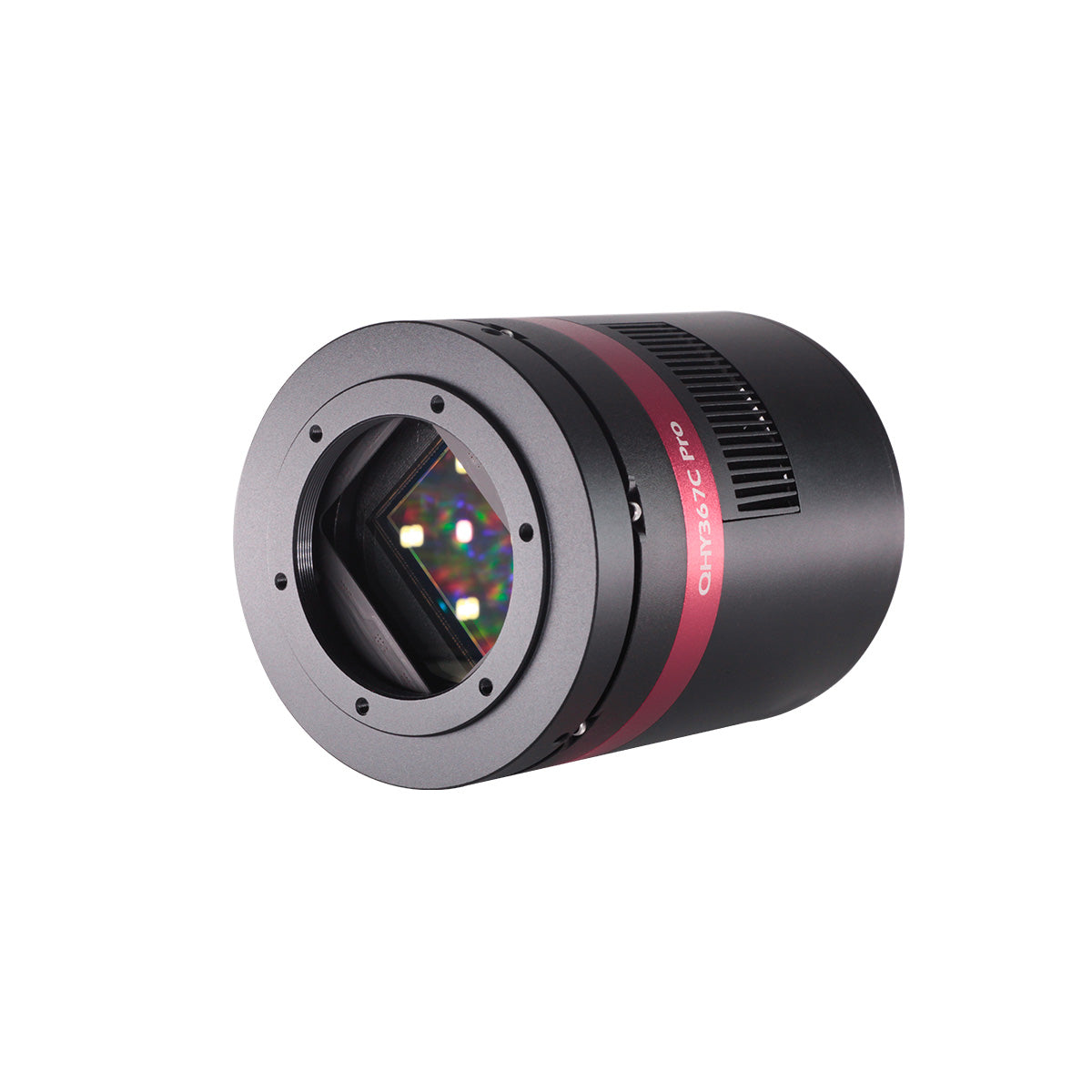

QHY367C Pro is a full frame color cooled cmos camera with SONY IMX094 sensor. 14bit ADC, zero amplifier glow. QHY367C Pro is one of the top performing full frame camera among COLDMOS Series.The Sony Exmor IMX094 CMOS sensor is also found in the Nikon D800/810 DSLR cameras. This sensor is implemented in the QHY367C Pro specifically for astronomical use with QHYCCD thermal noise reduction technology. With read noise as low as 2.4e-, full well capacity of 56ke-, the camera has a dynamic range of more than 14 stops.
TRUE RAW Data
In the DSLR implementation there is a RAW image output, but typically it is not completely RAW. Some evidence of noise reduction and hot pixel removal is still visible on close inspection. This can have a negative effect on the image for astronomy such as the “star eater” effect. However, QHY Cameras offer TRUE RAW IMAGE OUTPUT and produces an image comprised of the original signal only, thereby maintaining the maximum flexibility for post-acquisition astronomical image processing programs and other scientific imaging applications.
Anti-Dew Technology
Based on almost 20-year cooled camera design experience, The QHY cooled camera has implemented the fully dew control solutions. The optic window has built-in dew heater and the chamber is protected from internal humidity condensation. An electric heating board for the chamber window can prevent the formation of dew and the sensor itself is kept dry with our silicon gel tube socket design for control of humidity within the sensor chamber.
Cooling
In addition to dual stage TE cooling, QHYCCD implements proprietary technology in hardware to control the dark current noise. As a result the dark current of the camera is 0.0015e-/p/s at -15℃.
| Model | QHY367C PRO |
| CMOS Sensor | Sony IMX094 |
| Mono/Color | Color |
| FSI/BSI | FSI |
| Pixel Size | 4.88μm*4.88μm |
| Effective Pixel Area | 7376*4938 |
| Effective Pixels | 36MP |
| Sensor Size | Full Frame (36mm x 24mm) |
| A/D | 14bit |
| Full Well Capacity (1×1, 2×2, 3×3) | 56ke- |
| Frame Rates | Full Resolution: 3.2FPS |
| Readout Noise | 2.4e- to 3.2e- |
| Dark Current | 0.0015e-/pixel/sec @-15℃ |
| Exposure Time Range | 60μs-3600sec |
| Recommend Gain* | 2800 |
| Amp Control | Nearly Zero Amplifer Glow |
| Shutter Type | Electronic Rolling Shutter |
| Computer Interface | USB3.0 |
| Built-in Image Buffer | 128MB DDR2 Memory Buffer |
| Cooling System | Dual Stage TEC cooler (-45℃ below ambient, test temperature +20℃） |
| Optic Window Type | AR+AR High Quality Multi-Layer Anti-Reflection Coating |
| Telescope Interface | M54/0.75 |
| Back Focal Length *Learm more: https://www.qhyccd.com/adapters/ |
17.5mm+6mm (CAA) |
| Anti-Dew Heater | Available |
| Weight | 680g |
Generally speaking, there’s no need for an OSC (one shot colored) camera to match filter wheel. If there’s any special needs, please refer to mono cam combos and choose the corresponding filter wheel. All OSC cams use OAG M if needed.
| Model | BFL Consumed |
| QHY600C/410C/367C/128C/247C/168C | 17.5mm+6mm (CAA) |
| QHY268C (Version before 2022) | 17.5mm+6mm (CAA) |
| OAGM | 10mm |
*About IR-Cut filter：
The sealing glass of QHY OSC cameras whose format are above APS-C is AR glass instead of IR/Cut filter. That’s because when the sensor size is bigger, if IR/Cut is closed to sensor, it’s easy to cause haloing effect on image. We use IR/Cut filter as sealing glass on 4/3 format cameras or below, like 163C, 183C; as for big sensor OSC cams, such as 268C, 367C, we provide a special adapter for fixing 2-inch IR/Cut filter at a farther position from the sensor, or users can fix the filter inside the default T mount.
D1: Connecting MPCC with 55mm BFL and M48 interface
D2: Connecting Canon EF Lens
D3: Connecting Nikon F Lens
