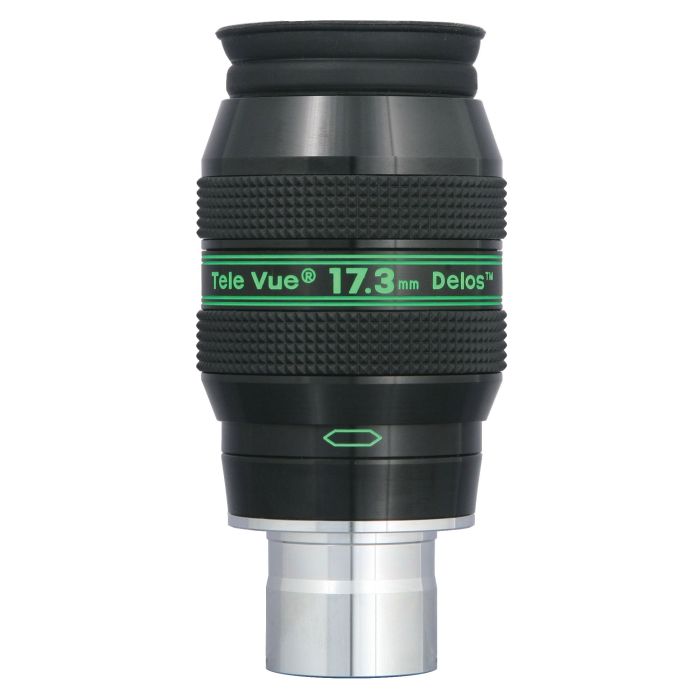

Tele Vue 17.3 mm Delos 1.25" Eyepiece

Includes a Free Eyepiece Case

Receive a free eyepiece case when you buy this Tele Vue eyepiece from High Point Scientific! You will love the way the two piece “bolt-style” case threads together to securely protect your new eyepiece from dust, moisture, and scratches during storage.

Tele Vue 17.3 mm Delos 1.25" Eyepiece

• This Tele Vue Delos eyepiece has a focal length of 17.3 mm

• It has a 1.25" barrel size

• The Delos 17.3 mm Eyepiece attains color neutrality, almost perfect distortion mapping, and full field sharpness

• It has a continuously-adjustable height eyeguard system that can be locked in any position

• Delivering a realistic 72° apparent field of view, and 20 mm of eye relief, the 17.3 mm Delos by Tele Vue is a pleasure to look through

The TeleVue Delos Eyepieces are a mid-to-short focal length line of 20 mm eye-relief, 72° apparent field of view eyepieces. In achieving reference-standard performance during any visual application, the Delos has been rethought with every attention to optical, mechanical, and ergonomic aspects. The Delos design was carefully crafted using Ethos performance standards as benchmarks.

The 72° field allows freedom to increase eye-relief, while controlling pupil aberrations, all without making the eyepiece too large. The Delos design achieves color neutrality, virtually perfect distortion mapping, and achieves full field sharpness. Using glass-matched multicoatings and anti-reflection surfaces throughout, image fidelity is maximized in the Delos eyepiece.

Because the eye lens measures a rather large 35 mm in diameter, stray light is prevented from entering your eye. This provides a nice increase in perceived contrast. Incorporated in the eyeguard is a sliding action which allows for positioning the soft rubber eyeguard at the ideal height to suit the observer's preference. The indicator marks on the eyepiece body are great reference guides for setting your perfect position. Further more, the eye-guard can also rotate for Dioptrx users.

Tele Vue Delos Eyepiece Specifications:

• Focal Length: 17.3 mm

• Apparent Field Of View: 72°

• Barrel Size: 1.25"

• Effective Field Stop: 21.2 mm

• Eye Relief: 20 mm

• Weight: 0.9 Ib

• SKU Number	TLV-EDL-173
  Model Number	EDL-173
  Standard or Speciality Eyepiece?	Standard Eyepiece
  Barrel Size	1.25"
  Eyepiece Focal Length (mm)	17mm
  Eyepiece Series	Tele Vue Delos
  Eye Relief	20 mm
  Apparent Field of View	72º
  Adjustable Eye Relief?	No
  Waterproof?	No
  Threaded for Filters?	Yes, 1.25"
  Field Stop (ex 8 mm, list all in kit with comma space between each)	21.2 mm
  Dimensions	Height: 4.2" (106.68 mm), Diameter of Black Barrel: 2.2" (55.88 mm)
  Weight (ounces)	14.4 oz
