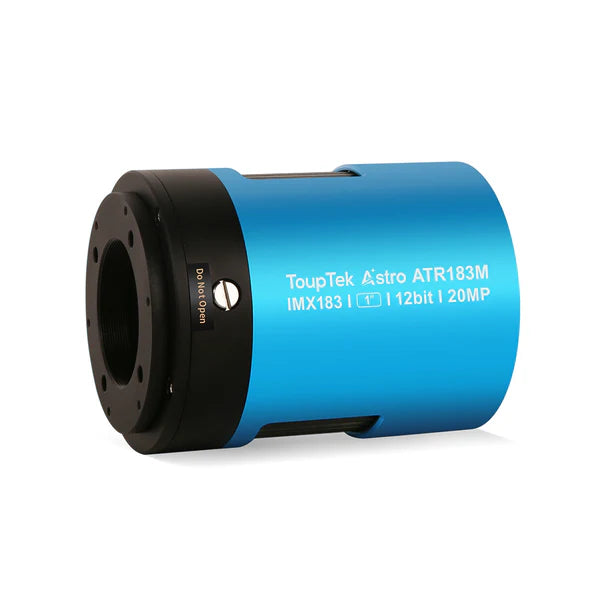

ToupTek Astro ATR183M IMX183M | Mono Camera | ATR3CMOS20000KMA

ATR183M has a resolution of 5440x3648, 2.4μm square pixels, 1-inch optical format, and supports binning mode. The camera equips with two-stage TEC cooling system with excellent effect (cooling temperature deviation can be controlled within 0.1℃), dew prevention heater (window heating), built-in 12-bit ADC, 15ke full well, supports high frame rate mode (8.6 fps@12 bit /17 fps@8 bit RAW).

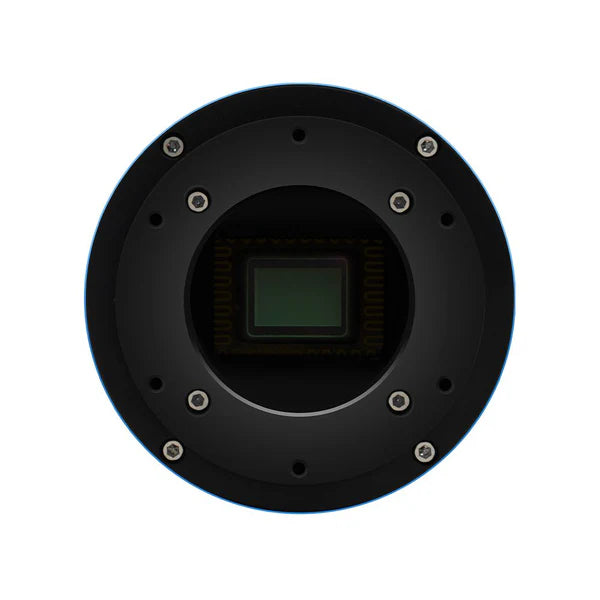

ATR183M features Sony IMX183 1inch Square Optical Format.
Resolution: 5440*3648
Pixel Size: 2.4μm*2.4μm
Image Area: 13.06mmx8.76mm,
Diagonal: 15.72mm

ATR183M camera has a 512MB (4Gb) ultra-fast memory buffer to ensure stable image transmission.

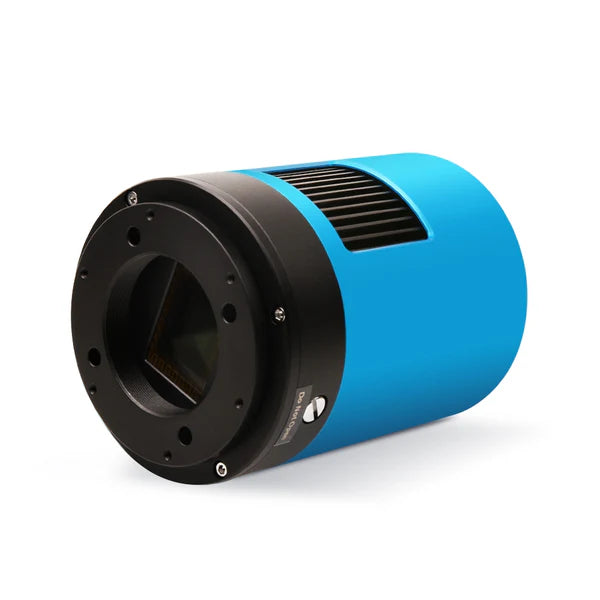

ATR183M is designed with an integrated heat dissipation structure and an efficient cooling module. The cooling system of ATR183M features a two-stage Thermoelectric Cooling (TEC) with controllable electric fan assisting in heat dissipation. This allows the image sensor to operate at temperatures up to 42 degrees Celsius lower than the ambient temperature. The exposure time can be set for up to 1 hour, ensuring that every minute detail is captured. Even in summer, it can still run stably all night with cooling temperatures ranging from of -5°C to -10°C.

ATR183M adopts the new anti-dew technology , which can effectively solve the condensation problem through heating.

This heating function consumes about 5 watts, which can be turned off via software to save power.

Additionally, The dew heater at the protection window has 4 adjustable levels, allowing users to find the heating power that best suits their needs.
