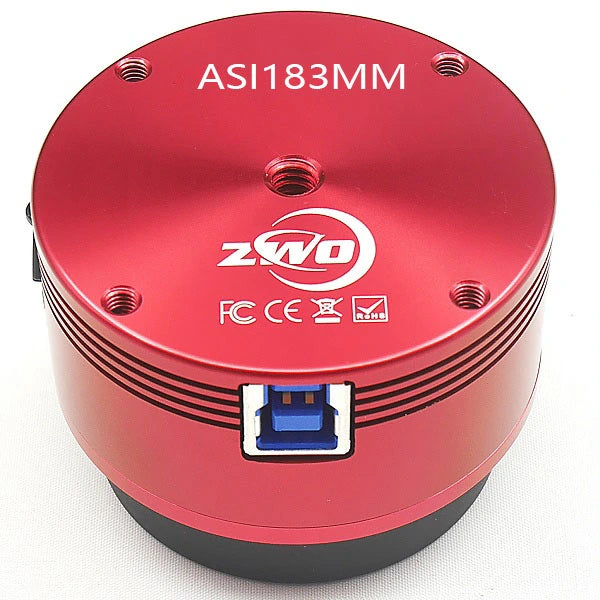

ZWO ASI183MM/MC Planetary Cameras

ZWO ASI183MM/MC Planetary Cameras

Regular price Rs. 74,885.00
Regular price Sale price Rs. 74,885.00
Sale Sold out
Tax included. Free Shipping (Read our policies here)

Out of stock

Size
  • RazorPay Secure Payment & EMI
  • All India Fast & Free Shipping
  • Replacement Guarantee

Introducing the ASI183 camera series, the most sensitivie cameras in ZWO history. Peak Q.E. of the mono sensor reaches 84%!

▶IMX183CLK-J/CQJ-J

Diagonal 15.86 mm Approx. 20.48M-Effective Pixel Monochrome/Color CMOS Image Sensor

▶High-Speed and High-Picture-Quality Rolling Shutter-Type Back-Illuminated CMOS Image Sensors

In the astronomic application field, Sony IMX183CLK-J (monochrome) and IMX183CQJ-J (color) sensors uses a very high sensitivity back-illuminated structure with high resolution 2.4 μm square unit pixel.  The optical size is 1 inch.

Astrophotography Performance

The ASI183 cameras has a very large full well capacity(15000e) for such small pixel size, 1.6e read noise @ 30DB, and 12stops dynamic range @ Gain=0. The ASI183 cameras also utilize firmware features to minimize amplifier glow for maximum performance in astrophotography.

High Speed

Fast FPS can be used in solar(white light) and lunar imaging, as well as for live viewing/EAA.The high speed readout may also be used for real-time focusing, true lucky imaging of double stars and other small objects, planetary imaging of the major planets in the solar system, and much more.

Notice: depends on user’s feedback, this IMX183 sensor has grid pattern noise when do Ha solar imaging,  please take flat frame for calibration(out of focus or add a barlow lens to take flat frames). We recommend our ASI1600/ASI174 mono camera for Ha solar imaging.

10Bit ADC
5496×3672    19fps
3840×2160    41.04fps
1920×1080    80.10fps
1280×720      117.30fps
12bit ADC
5496×3672    19fps
3840×2160    36.12fps
1920×1080    70.48fps
1280×720      103.23fps

High QE

Sony’s back-illuminated Exmor R technology, giving it excellent Deep Sky performance. ASI183 QE peak reaches a remarkable 84%. In Ha channel, QE is still a over 60%.

Having high QE means more of the light that enters your telescope and reaches the sensor is actually used. With 84% peak Q.E. and no less than ~50% within the visible spectrum, the ASI183 will utilize a high percentage of the light that reaches it, improving your signal quality.

ASI183MM

ASI183MC

USB 3.0 Port & ST4 Port

USB 3.0 Port: Provide 5Gb bandwidth to make it possible for ASI183 to run at 19 fps (12bit, normal mode) or 19 fps (10bit, high speed mode)  at full resolution(20.18Mega).

ST4 Port: can be used connect with auto guide port of mount, for guiding.

Mechanical Drawing

What is in the box?

ASI183 box includes all necessary cables, adapters, and manuals.
